Energy rating bands have recently been re-scaled and revert to a simple A-G scaling, with no plusses.
This product would have been rated A++ on the previous energy rating scale.
Although re-scaled, this product is still just as energy efficient.
Product Family
Dishwashers
Aesthetics
Universal
Installation
Partially-integrated built-in
Width
60 cm
Number of place settings
13
Colour
Stainless steel
Energy Efficiency Class (Washing cycle)
E

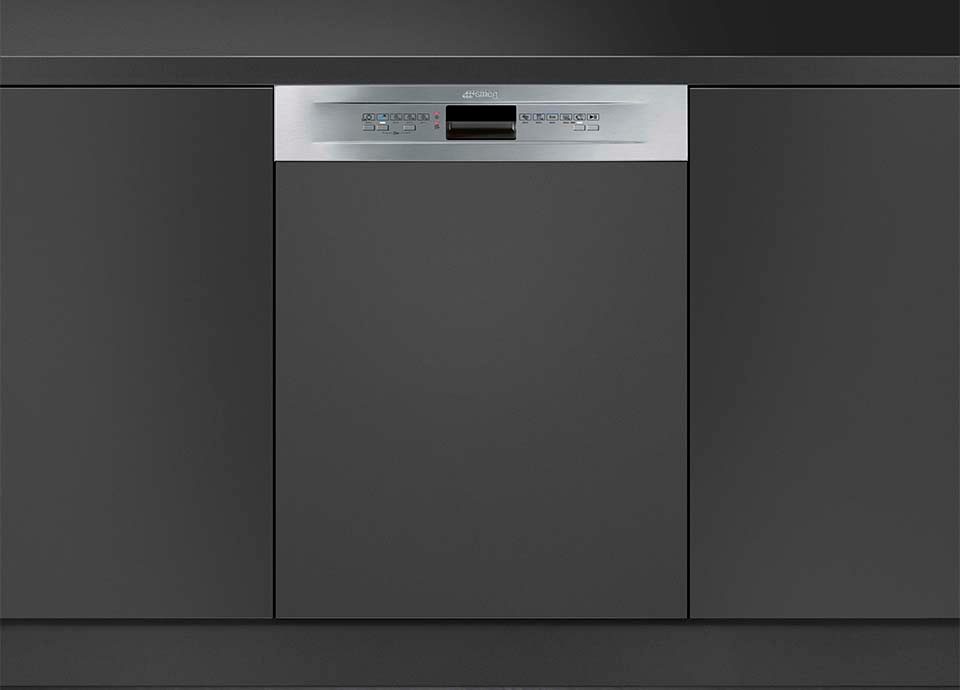

SEMI-INTEGRATED
Much like integrated models, Semi integrated dishwashers blend into your kitchen however the facia panel is still visible like a freestanding model, so this design is the best of both worlds, perfect for those unable to decide.
Orbital washing system
Smeg's unique orbital wash system distributes water evenly throughout your dishwasher. The machine's double spray arm contra-rotating action is perfectly shaped to direct water with precision, ensuring an excellent washing quality and a low noise level.

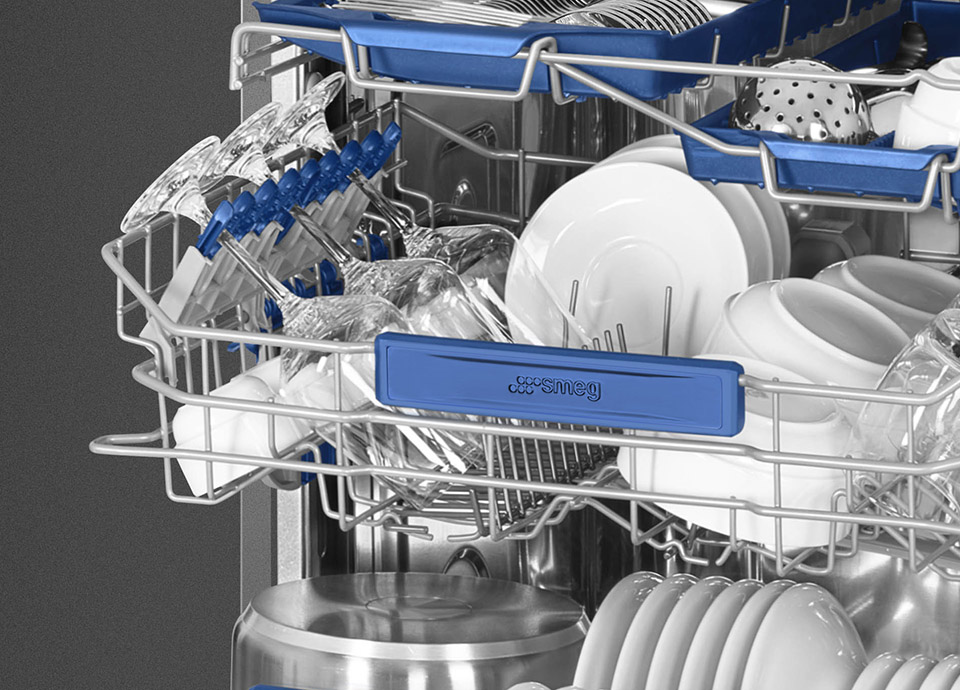

GLASS HOLDERS
Glasses are kept secure thanks to the new designed stem glass holders which have a minimum touch area, stopping any movement and reducing water marks on touch points. These also offer increased stability for tumblers, larger glasses and mugs.
Please note blue inserts are only featured on selected models.
AQUASTOP
Most Smeg dishwashers have Total acquastop, an electronic device fitted to the water intake hose and the base of the machine, which monitors water levels in the machine, detects leaks in the hose and switches off the water supply immediately directly from the source when necessary, preventing water spillages onto the floor.
Type
Product Family:
Dishwashers
Commercial height:
82 cm
Number of place settings:
13
Installation:
Partially-integrated built-in
Width:
60 cm
Kitchen panel:
Not supplied
EAN code:
8017709285630
Aesthetics
Colour:
Stainless steel
Finishing:
Fingerproof
Aesthetics:
Universal
Front panel colour:
Finger friendly stainless steel
Door type:
Without frame
LED/display colour:
White
Handle colour:
Black
Button colour:
Silver (oropal grey)
Programs / Functions
No. of programmes:
5+5 quick programmes
Soak:
Yes
Rapid 27':
Yes
Glass:
Yes
ECO:
Yes
Mix:
Yes
Ultraclean:
Yes
ECO Quick:
Yes
Delicate and Quick:
Yes
Mix Express:
Yes
Strong and fast:
Yes
Washing temperatures:
38, 45, 50, 55, 65, 70 °C
Options
Delay timer option:
3-6-9 hours, with automatic soak
Quick Time option:
Yes
Baskets
N° baskets:
2
Basket colour:
Grey
Basket components colour:
Grey
Handle:
In plastic on upper and lower basket
Upper Basket:
With central fixed racks
Height adjustment of the upper basket:
On three levels
Lower Basket:
With fixed racks
Largest loadable dish in upper basket:
25,0 cm
Lower basket with anti-drip inserts:
Yes
Largest loadable dish in lower basket:
30,0 cm
Cutlery basket:
13 place settings sliding
Colour Inner Components:
Blue
Technical Features
Controls:
Electronic
Door opening system:
Yes
On/off indicator:
Yes
Salt light indicator:
Light
Rinse aid indicator:
Light
End of cycle indicator:
Acoustic signal
Washing system:
Orbital
Drying system:
Natural condenser drying
Motor:
Single phase
Third spray arm:
Single
Water softener:
With electronic setting
Flood protection system:
Total Acquastop
Water supply:
Single; cold/hot water max. 60°C - energysave with hot water up to 35%
Max water hardness:
100°fH;58°dH
Steam protection:
In plastic
Tank material:
Stainless steel
Filter:
Stainless steel
Concealed heating element:
Yes
Hinges:
Self balancing with fixed hinges
Min. and max plinth height:
100 - 215 mm
Adjustable feet:
7cm, from 820 to 890 mm
Back feet adjustable from front:
Yes
Performance / Energy Label NEW
Energy Efficiency Class (Washing cycle):
E
Energy consumption [per 100 cycles, based on the eco programme]:
91 KWh
Rated capacity (ps):
13
Water consumption [per cycle]:
12.0 litres
Programme duration:
2:30 h:min
Airborne acoustical noise emissions (spinning phase):
51 dB(A) re 1 pW
Airborne acoustical noise emission class:
D
Energy efficiency Index (EEI) (Washing cycle):
54.3
Electrical Connection
Connected power:
1800 W
Voltage:
220-240 V
Type of connection:
Single-phase
Frequency (Hz):
50 Hz
Power supply cable length:
140 cm
Features attributes
Noise level:
>= 48 db(A)
Logistic Information
Dimensions of the product HxWxD (mm):
818x598x568
Net weight (kg):
42.000 kg
Gross weight (kg):
43.700 kg
FR Extention single group
Country of origin:
IT
Packed width:
650 mm
Packaged depth:
670 mm
Height (mm) packed:
890 mm
Dimensions of the packed product (mm):
890X650X670
Maximum stackability:
5
Type of packaging:
Shrinkwrap
Packaging composition - paper & cardboard (kg):
0.000 kg
Packaging composition - polystyrene (kg):
1.229 kg
Packaging composition - wood (kg):
0.205 kg
Packaging composition - plastic (kg):
0.396 kg
Other accessories:
Salt funel
Instruction manual
Energy Label 2021
Energy Label
Product information sheet
Product sheet
Brochure
3D file
