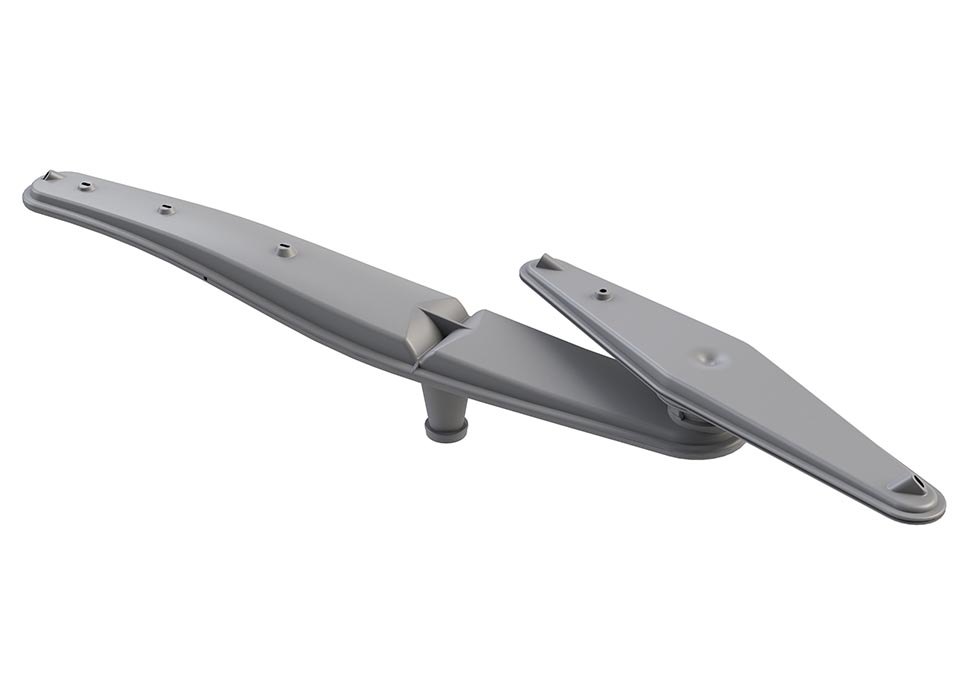

Smeg's unique orbital wash system distributes water evenly throughout your dishwasher. The machine's double spray arm contra-rotating action is perfectly shaped to direct water with precision, ensuring an excellent washing quality and a low noise level.
Search
Enter at least 3 characters
Product Family
Dishwashers
Aesthetics
Universal
Installation
Fully-integrated built-in
Width
60 cm
Number of place settings
13
Colour
Black
Energy Efficiency Class (Washing cycle)
C
Orbital washing system
INVERTER MOTOR
Some dishwasher models are fitted with a latest generation Inverter motor which guarantees a longer service life, efficiency, reduced energy consumption and noise level.
Dishwashers fitted with the Inverter Motor have a Silence program which reduces the initial noise level of the dishwasher by 2 dB (A).
This is ideal for open plan kitchens and night use, especially during off-peak hours for total discretion.
AQUASTOP
Most Smeg dishwashers have Total acquastop, an electronic device fitted to the water intake hose and the base of the machine, which monitors water levels in the machine, detects leaks in the hose and switches off the water supply immediately directly from the source when necessary, preventing water spillages onto the floor.
DELAY TIMER
A delay timer can be set to run the programme at a convenient time or to take advantage of off-peak energy periods.
SILENT PROGRAM
The hydraulic system, the shape of the bottom of the chamber and the use of increasingly high-performance motors means that the noise of the washing cycle is reduced by up to -2 dB when this program is selected.
EXPRESS 27' PROGRAM
Designed especially for lightly soiled dishes to be washed immediately after use, the quick program washes in just 27 minutes.
Type
Product Family:
Dishwashers
Commercial height:
82 cm
Number of place settings:
13
Installation:
Fully-integrated built-in
Width:
60 cm
Kitchen panel:
Not supplied
EAN code:
8017709307837
Aesthetics
Colour:
Black
Finishing:
Black
Aesthetics:
Universal
Front panel colour:
Black
Door type:
Galvanized
LED/display colour:
White
Button colour:
Black
Programs / Functions
No. of programmes:
10
Soak:
Yes
Express 27':
Yes
Full express - 60 minutes:
Yes
ECO:
Yes
Quiet (-2 dB):
Yes
Mix:
Yes
Intense:
Yes
Hygiene 99,9%:
Yes
Daily 1/2 load:
Yes
Crystal:
Yes
Washing temperatures:
38, 45, 50, 55, 65, 70, 75 °C
Options
Delay timer option:
3-6-9 hours, with automatic soak
Special programs option:
Yes
Baskets
N° baskets:
3, Flexi
Basket colour:
Grey
Basket components colour:
Grey
Handle:
In plastic on upper and lower basket
Upper Basket:
With 1 foldable rack
Glass holder:
Yes
Height adjustment of the upper basket:
On three levels
Lower Basket:
With 2 foldable racks
Largest loadable dish in upper basket:
19,0 cm
Lower basket with anti-drip inserts:
Yes
Largest loadable dish in lower basket:
30,0 cm
Colour Inner Components:
Blue
Technical Features
Controls:
Electronic
Door opening system:
Yes
On/off indicator:
Yes
Salt light indicator:
Light
Rinse aid indicator:
Light
End of cycle indicator:
Acoustic signal
Washing system:
Orbital
Drying system:
Natural condenser drying, with Dry Assist + automatic door opening system at the end of the cycle
Motor:
Inverter 2.0
Third spray arm:
Single
Water softener:
With electronic setting
Flood protection system:
Total Acquastop
Water supply:
Single; cold/hot water max. 60°C - energysave with hot water up to 35%
Max water hardness:
100°fH;58°dH
Steam protection:
In plastic
Tank material:
Stainless steel
Filter:
Stainless steel
Concealed heating element:
Yes
Min. and max plinth height:
100 - 228 mm
Min. and max. frontal panel weight:
2 - 9 kg
Hinges:
Self balancing with fixed hinges
Adjustable feet:
7cm, from 820 to 890 mm
Back feet adjustable from front:
Yes
Performance / Energy Label NEW
Energy Efficiency Class (Washing cycle):
C
Energy consumption [per 100 cycles, based on the eco programme]:
73 KWh
Rated capacity (ps):
13
Water consumption [per cycle]:
9.0 litres
Programme duration:
4:25 h:min
Airborne acoustical noise emissions (spinning phase):
46 dB(A) re 1 pW
Airborne acoustical noise emission class:
C
Energy efficiency Index (EEI) (Washing cycle):
43.8
Electrical Connection
Connected power:
1800 W
Current:
13 A
Voltage:
220-240 V
Type of connection:
Single-phase
Frequency (Hz):
50 Hz
Power supply cable length:
140 cm
Features attributes
Noise level:
45 - 47 dB(A)
Logistic Information
Dimensions of the product HxWxD (mm):
818x598x570
Net weight (kg):
41.000 kg
Gross weight (kg):
43.000 kg
Country of origin:
IT
Packed width:
650 mm
Packaged depth:
665 mm
Height (mm) packed:
890 mm
Dimensions of the packed product (mm):
890X650X665
Maximum stackability:
5
Type of packaging:
Shrinkwrap
Packaging composition - paper & cardboard (kg):
0.000 kg
Packaging composition - polystyrene (kg):
1.145 kg
Packaging composition - wood (kg):
0.205 kg
Packaging composition - plastic (kg):
0.485 kg
Other accessories:
Salt funel
Instruction manual
Energy Label 2021
Energy Label
Product information sheet
Product sheet
Brochure
