Cooker Stainless steel SYD4110-1 | Smeguk.com

Cooker

Classic

SYD4110-1

Product Family
Cooker
Cooker size
110x60 cm
Aesthetics
Classic
Series
Symphony
Colour
Stainless steel
Hob type
Gas
Main oven type
Thermo-ventilated
Type of second oven
Fan assisted
Energy efficiency class
A
Energy efficiency class, second cavity
A
  • Highlights
  • Features
  • Accessories
  • Download

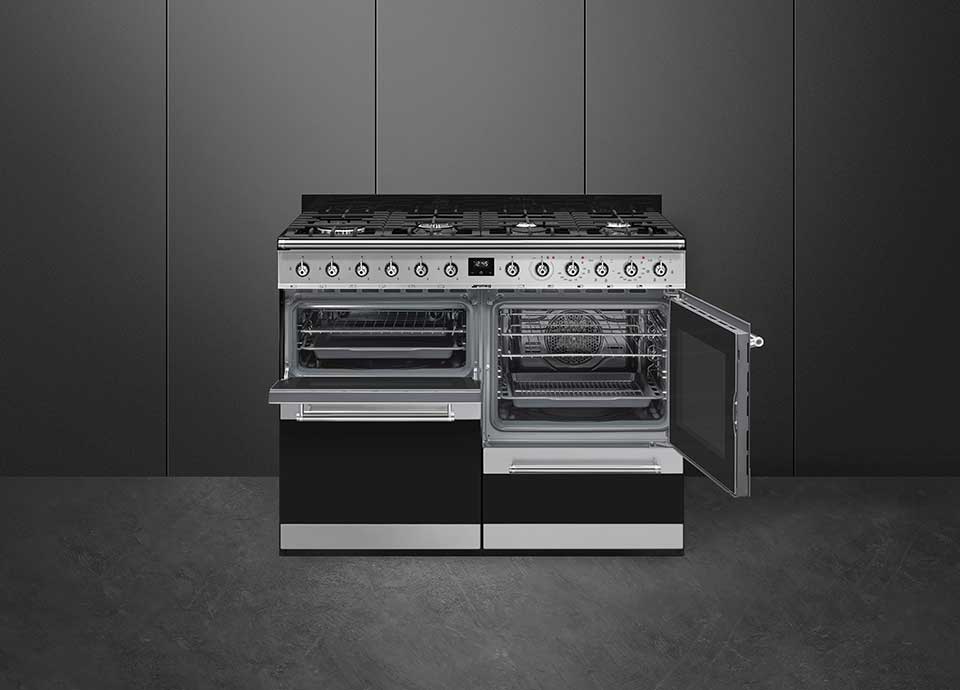

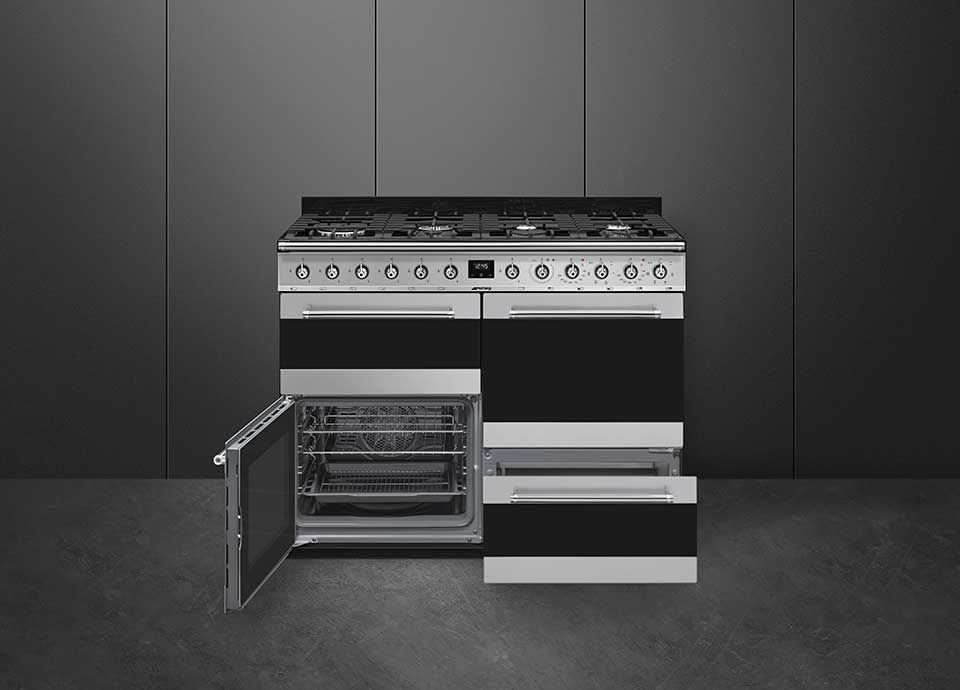

The 110cm wide SYD4110-1 cooker features a multifunction main oven and auxiliary oven, both offering conventional and fan cooking. They each have a generous 61 litre net capacity, 4 shelf positions and feature side opening doors.

In addition, there is a separate 36 litre fully variable grill for controllable closed door grilling on two levels, as well as a convenient pullout storage drawer for pans and baking trays.

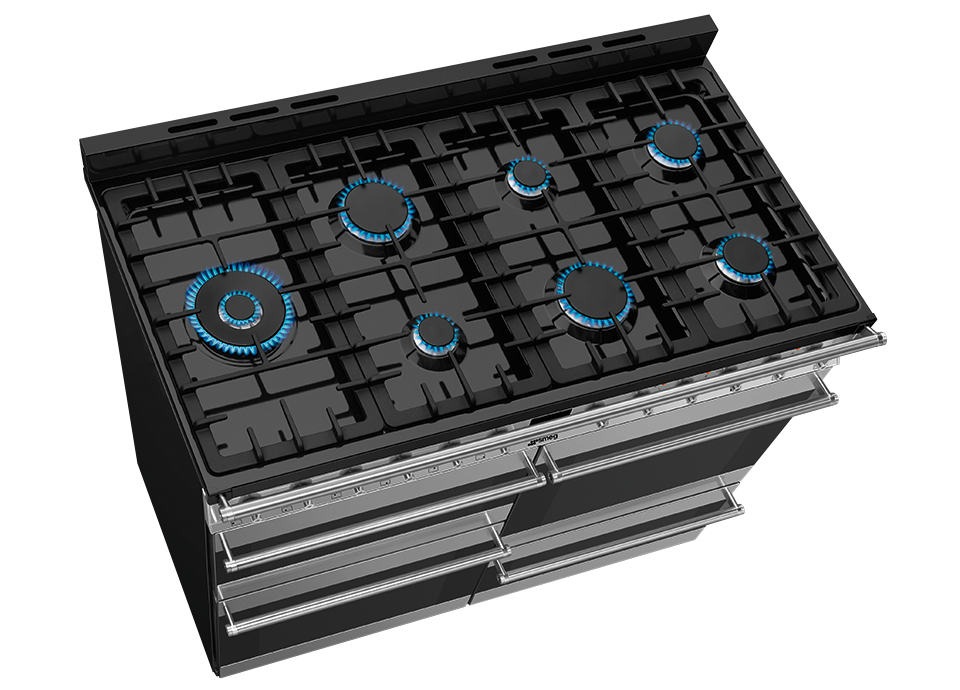

7 BURNER GAS HOB

This flexible gas hob has 7 variable power burners including a large, high power wok burner.

A stainless steel teppanyaki grill plate is also available as an optional extra, which can be placed over two burners for direct contact cooking.



HANDLES & RAILS

The oven handles cover the width of each cavity whilst a handrail, spanning the width of the cooker, is perfect for hanging towels on.

TOUCH TIMER DISPLAY

The touch timer display guarantees simple functionality. They display the time, set programmed cooking and the minute minder timer.

ECLIPSE BLACK GLASS

This innovative, premium material appears jet black when the oven is off, yet transparent when the oven is turned on and the light illuminates the cavity

Easy clean enamel interior

The enamel finish of the oven cavity has a special antacid lining which helps to reduce the amount of dirt adhering to the surface.

Vapor Clean Programme

Smeg ovens offer a vapor clean programme designed to generate steam to help release burnt on food from the walls of the oven. Vapour cleaning is straightforward, simply put a little water & detergent into the hollow in the oven base and select the vapour setting

CLOSED DOOR GRILLING

Closed door grilling allows you to grill with the door closed, keeping cooking smells inside the oven and out of the kitchen to ensure a safe cooking environment and reduced energy consumption.

SIDE OPENING DOORS

This cooker has side opening doors which allow easy access letting you get closer to the oven, especially useful for people with mobility limitations.

EXTRA STORAGE

This cooker has a useful storage compartment beneath the oven, perfect for housing shelves, racks, trays and other items.

Type

Vapor Clean: a simple cleaning function using steam to loosen deposits in the oven cavity.
Product Family: Cooker
Cooker size: 110x60 cm
Energy type: Gas
N. of ovens: 3
Hob type: Gas
Main oven type: Thermo-ventilated
Type of second oven: Fan assisted
Cleaning system: Vapor Clean
EAN code: 8017709300524

Aesthetics

Heavy duty cast iron pan stands: for maximum stability and strength.
Colour: Stainless steel
Finishing: Brushed
Aesthetics: Classic
Design: Square design
Series: Symphony
Material: Enamelled
Door: With 2 horizontal strips
Command panel finish: Stainless steel
Hob colour: Black enamel
Handle: Smeg Classic
Controls colour: Stainless steel
Upstand: Yes
Display: Touch
Type of pan stands: Cast Iron
Handle Colour: Brushed stainless steel
Control knobs: Smeg Classic
Glass type: dark grey
No. of controls: 12
Plinth: Black
Storage compartment: Drawer

Programme / Functions

Traditional cooking functions
  • Upper and lower element only: a traditional cooking method best suited for single items located in the centre of the oven. the top pf the oven will always be hottest. Ideal for roast, fruit cakes, bread etc. Static
  • Fan with upper and lower elements: The elements combined with the fan aim to provide more uniform heat, a similar method to conventional cooking, so pre-heat is required. Most suitable for items requiring slow cooking methods. Fan assisted
  • Circulaire:  The combination of the fan and circular element around it gives a hot air cooking method. This provides many benefits including no preheat if cook time is more than 20 minutes, no flavour transfer when cooking different foods at the same time, less energy, and shorter cook times. Good for all types of food. Circulaire
  • ECO: The combination of the grill, fan and lower element is particularly suitable for cooking small quantities of food. ECO
  • Circogas: In gas ovens the fan distributes the heat quickly and evenly throughout the oven cavity, avoiding flavour transfer when cooking a number of different dishes at the same time. In electric ovens this combination completes cooking more quickly of foods that are ready on the surface, but that require more cooking inside, without further browning. Fan assisted base
Cleaning functions
  • Vapor Clean: a simple cleaning function using steam to loosen deposits in the oven cavity. Vapor Clean
Other functions
  • Defrost by time: with this function the time of thawing of foods are determined automatically. Defrost by time

Programs / Functions Auxiliary Oven

Cooking functions cavity 2: 5
Traditional cooking functions, cavity 2
  • Upper and lower element only: a traditional cooking method best suited for single items located in the centre of the oven. the top pf the oven will always be hottest. Ideal for roast, fruit cakes, bread etc. Static
  • Fan with upper and lower elements: The elements combined with the fan aim to provide more uniform heat, a similar method to conventional cooking, so pre-heat is required. Most suitable for items requiring slow cooking methods. Fan assisted
  • Fan with grill element: The fan reduces the fierce heat from the grill, providing an excellent method of grilling various foods, chops, steaks, sausages etc. giving even browning and heat distribution, without drying out the food. The top two levels recommended for use, and the lower part of the oven can be used to keep items warm at the same time, an excellent facility when cooking a grilled breakfast. Half grill (centre portion only) is ideal for small quantities of food. Fan grill (large)
  • Lower heating element only: This function is ideal for foods that require extra base temperature without browning, e.g. pastry dishes, pizza. Also suitable for slow cooking of stews and casseroles. Bottom
  • Circogas: In gas ovens the fan distributes the heat quickly and evenly throughout the oven cavity, avoiding flavour transfer when cooking a number of different dishes at the same time. In electric ovens this combination completes cooking more quickly of foods that are ready on the surface, but that require more cooking inside, without further browning. Fan-assisted bottom
Cleaning functions cavity 2
  • Vapor Clean: a simple cleaning function using steam to loosen deposits in the oven cavity. Vapor Clean
Other functions cavity 2
  • Defrost by time: with this function the time of thawing of foods are determined automatically. defrost by time

Programme / Functions Third Oven

No. of functions third oven: 1

Options Main Oven

Timer: Yes
End of cooking acoustic alarm: Yes
Minimum Temperature: 50 °C
Maximum temperature: 260 °C

Options Auxiliary Oven

Minimum Temperature: 50 °C
Maximum temperature: 260 °C

Options Third Oven

Minimum Temperature: 50 °C
Maximum temperature: 260 °C

Hob technical features

Ultra rapid burners: Powerful ultra rapid burners offer up to 5kw of power.
Total no. of cook zones: 7
1st zone position: Left
2nd zone position: Front left
3rd zone position: Rear left
4th zone position: Front centre
5th zone position: Rear centre
6th zone position: Front right
7th zone position: Rear right
1st zone type: Gas - 2UR (dual)
2nd zone type: Gas - AUX
3rd zone type: Gas - Rapid
4th zone type: Gas - Rapid
5th zone type: Gas - AUX
6th zone type: Gas - Semi Rapid
7th zone type: Gas - Semi Rapid
1st zone power: 4.20 kW
2nd zone power: 1.00 kW
3rd zone power: 2.90 kW
4th zone power: 2.90 kW
5th zone power: 1.00 kW
6th zone power: 1.80 kW
7th zone power: 1.80 kW
Type of gas burners: Standard
Burner caps: Matt black enamelled
Automatic electronic ignition: Yes
Gas safety valves: Yes

Main Oven Technical Features

All glass inner door: All glass inner door, a single flat surface which is simple to keep clean. Air cooling system: to ensure a safe surface temperatures. Triple glazed doors: Number of glazed doors. The capacity indicates the amount of usable space in the oven cavity in litres. Enamel interior: The enamel interior of all Smeg ovens have a special antacid lining which helps keep the interior clean by reducing the amount of cooking grease adhering to it. The oven cavity has 4 different cooking levels. The inner door glass: can be removed with a few quick movements for cleaning. Side lights: Two opposing side lights increase visibility inside the oven.
Net volume of the cavity: 61 litres
Cavity material: Easy clean enamel
Shelf positions: 4
Type of shelves: Metal racks
No. of lights: 1
Light type: Halogen
Light power: 40 W
Fan number: 1
Cooking time setting: Start and Stop
Door opening: Side opening
Side opening door: Yes
Removable door: Yes
Full glass inner door: Yes
Removable inner door: Yes
Total no. of door glasses: 3
No.of thermo-reflective door glasses: 1
Safety Thermostat: Yes
Cooling system: Tangential
Grill type: Electric
Grill elememt: 1700 W
Large grill - Power: 2700 W
Lower heating element power: 1200 W
Upper heating element - Power: 1000 W
Circular heating element - Power: 2700 W
Temperature control: Electro-mechanical

Second Oven Technical Features

All glass inner door: All glass inner door, a single flat surface which is simple to keep clean. Air cooling system: to ensure a safe surface temperatures. The capacity indicates the amount of usable space in the oven cavity in litres. Triple glazed doors: Number of glazed doors. Tilting grill: the tilting grill can be easily unhooked to move the heating element and clean the roof of the appliance in one simple step. Enamel interior: The enamel interior of all Smeg ovens have a special antacid lining which helps keep the interior clean by reducing the amount of cooking grease adhering to it. The oven cavity has 4 different cooking levels. Side lights: Two opposing side lights increase visibility inside the oven. Electronic control: Allows you to maintain temperature inside the oven with the precision 2-3 ° C. This enables to cook meals that are very sensitive to temperature changes, such as cakes, souffles, puddings.
Net volume of the second cavity: 61 litres
Cavity material: Easy clean enamel
Shelf positions: 4
Type of shelves: Metal racks
No. of lights: 1
Light type: Halogen
Light power: 40 W
Fan number: 1
Door opening: Side opening
Side opening door: Yes
Removable door: Yes
Full glass inner door: Yes
Removable inner door: Yes
No. total door glasses: 3
No. thermo-reflective door glasses: 1
Safety Thermostat: Yes
Cooling system: Tangential
Grill type: Electric
Tilting grill: Yes
Grill element - power: 1700 W
Large grill - Power: 2700 W
Lower heating element - power: 1200 W
Upper heating element - Power: 1000 W
Temperature control: Electro-mechanical

Third Oven Technical Features

Enamel interior: The enamel interior of all Smeg ovens have a special antacid lining which helps keep the interior clean by reducing the amount of cooking grease adhering to it. Tilting grill: the tilting grill can be easily unhooked to move the heating element and clean the roof of the appliance in one simple step. The oven cavity has 2 different cooking levels. All glass inner door: All glass inner door, a single flat surface which is simple to keep clean. The capacity indicates the amount of usable space in the oven cavity in litres. Air cooling system: to ensure a safe surface temperatures. Triple glazed doors: Number of glazed doors.
Net volume, 3rd cavity: 36 l
Gross volume, 3rd cavity: 41 l
Cavity material: Easy clean enamel
Shelf positions: 2
Type of shelves: Metal racks
No. of lights: 1
Light type: Incandescent
Light power: 25 W
Door opening: Flap down
Removable door: Yes
Full glass inner door: Yes
Removable inner door: Yes
No. total door glasses: 3
No. of thermo-reflective door glasses: 1
Safety Thermostat: Yes
Cooling system: Tangential
Grill type: Electric
Tilting grill: Yes
Large grill - Power: 2700 W
Temperature control: Electro-mechanical

Performance / Energy Label

???Energy_Label_A-Right-Yellow_72dpi???
Energy efficiency class: A
GAS - Energy consumption in fan-forced convection, first cavity: 2.77 MJ
Energy consumption forced air convection (kWh) first cavity: 0.77 KWh
GAS - Energy consumption conventional mode, first cavity: 3.42 MJ
Energy consumption conventional first cavity (kWh): 0.95 KWh

Performance /Energy Label - Second Cavity

???Energy_Label_A-Right-Yellow_72dpi???
Energy efficiency class, second cavity: A
GAS - Energy consumption in conventional mode, second cavity: 3.42 MJ
GAS - Energy consumption in conventional mode, second cavity: 0.95 KWh
GAS - Energy consumption in forced air convection, second cavity: 2.77 MJ
GAS - Energy consumption in forced air convection, second cavity: 0.77 KWh

Electrical Connection

Nominal power: 8400 W
Voltage: 220-240 V
Voltage 2 (V): 380-410 V
Frequency: 50/60 Hz

Gas Connection

Gas connection rating (W): 15500 W
Gas Type: G20 Natural gas

Logistic Information

Width (mm): 1100 mm
Product Height (mm): 900 mm
Depth (mm): 600 mm
Net weight (kg): 121.600 kg

Accessories Included

Other gas nozzles included: G30 LPG liquid gas

Accessories included for Main Oven & Hob

Cast iron wok support: 1
Top oven chrome shelf with back stop: 2
Grill mesh: 1
40mm deep tray: 1
Telescopic Guide rails, partial Extraction: 1

Accessories included for Secondary Oven

Rack with back and side stop: 2
Grill mesh: 1
40mm deep tray: 1
Telescopic Guide rails, partial Extraction: 1

Accessories included for Third Oven

Rack with back and side stop: 1
40mm deep tray: 1
