Cooker

Classic

C7GPX9

Product Family
Cooker
Cooker size
70x60 cm
Aesthetics
Classic
Series
Symphony
Colour
Stainless steel
Hob type
Gas
Main oven type
Thermo-ventilated
Energy efficiency class
A
  • Highlights
  • Features
  • Accessories
  • Download

SYMPHONY AESTHETIC

The aesthetic style of the Symphony range conveys the look and feel of a specialist kitchen in a domestic environment. Characterised by a contemporary and distinctive square design, ergonomic control knobs and stainless steel handles, this range is a clear extension of the Classic family.

Pyrolytic cleaning

Through the automatic pyrolytic cleaning function, all the dirt and grease stuck to the walls of the oven is burned away effortlessly, without the need for detergents, thanks to the extremely high temperature reached by the oven (500 °C).

Type

Pyrolitic: Pyrolitic cleaning cycles can be selected as necessary to automatically clean the oven interior.
Product Family: Cooker
Cooker size: 70x60 cm
Hob type: Gas
Main oven type: Thermo-ventilated
Cleaning system: Pyrolytic
EAN code: 8017709272616

Aesthetics

Heavy duty cast iron pan stands: for maximum stability and strength. Fingerprint proof stainless steel: Fingerprint proof stainless steel keeps stainless steel looking as good as new.
Colour: Stainless steel
Aesthetics: Classic
Design: Square design
Series: Symphony
Material: Stainless steel
Door: With 2 horizontal strips
Command panel finish: Finger friendly stainless steel
Hob colour: Stainless steel
Handle: Smeg Classic
Controls colour: Stainless steel
Upstand: Yes
Display: Touch
Type of pan stands: Cast Iron
Handle Colour: Brushed stainless steel
Control knobs: Smeg Classic
Glass type: dark grey
Feet: Silver
Storage compartment: Door

Programme / Functions

Traditional cooking functions
  • Upper and lower element only: a traditional cooking method best suited for single items located in the centre of the oven. the top pf the oven will always be hottest. Ideal for roast, fruit cakes, bread etc. Static
  • Fan with upper and lower elements: The elements combined with the fan aim to provide more uniform heat, a similar method to conventional cooking, so pre-heat is required. Most suitable for items requiring slow cooking methods. Fan assisted
  • Circulaire:  The combination of the fan and circular element around it gives a hot air cooking method. This provides many benefits including no preheat if cook time is more than 20 minutes, no flavour transfer when cooking different foods at the same time, less energy, and shorter cook times. Good for all types of food. Circulaire
  • Circulaire with upper and lower elements: The use of the fan with both elements allows food to be cooked quickly and effectively, ideal for large joints that require thorough cooking. It offers a similar result to rotisserie, moving the heat around the food, instead of moving the food itself, enabling any size or shape to be cooked. Turbo (circolaire + bottom + upper + fan)
  • ECO: The combination of the grill, fan and lower element is particularly suitable for cooking small quantities of food. ECO
  • Half grill: For rapid cooking and browning of foods. Best results can be obtained by using the top shelf for small items, the lower shelves for larger ones, such as chops or sausages. For half grill heat is generated only at the centre of the element, so is ideal for smaller quantities. Small grill
  • Grill element: Using of grill gives excellent results when cooking meat of medium and small portions, especially when combined with a rotisserie (where possible). Also ideal for cooking sausages and bacon. Large grill
  • Fan with grill element: The fan reduces the fierce heat from the grill, providing an excellent method of grilling various foods, chops, steaks, sausages etc. giving even browning and heat distribution, without drying out the food. The top two levels recommended for use, and the lower part of the oven can be used to keep items warm at the same time, an excellent facility when cooking a grilled breakfast. Half grill (centre portion only) is ideal for small quantities of food. Fan grill (large)
  • Circogas: In gas ovens the fan distributes the heat quickly and evenly throughout the oven cavity, avoiding flavour transfer when cooking a number of different dishes at the same time. In electric ovens this combination completes cooking more quickly of foods that are ready on the surface, but that require more cooking inside, without further browning. Fan assisted base
Cleaning functions
  • Pyrolitic: Pyrolitic cleaning cycles can be selected as necessary to automatically clean the oven interior. Pyrolytic

Options Main Oven

Timer: Yes
End of cooking acoustic alarm: Yes
Minimum Temperature: 50 °C
Maximum temperature: 280 °C

Hob technical features

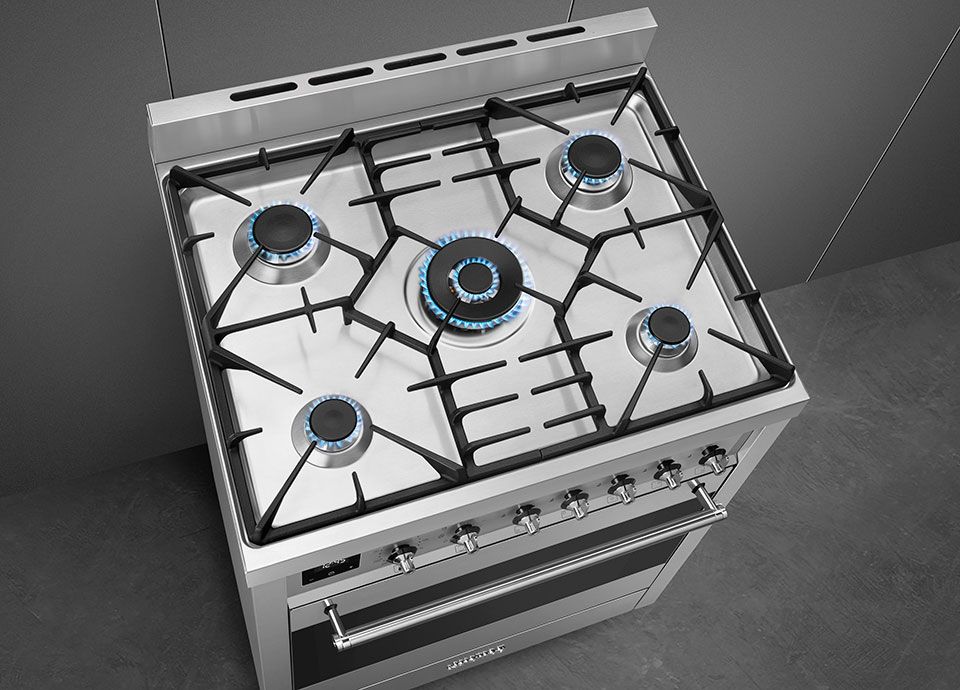

Ultra rapid burners: Powerful ultra rapid burners offer up to 5kw of power.
Total no. of cook zones: 5
1st zone position: Front left
2nd zone position: Rear left
3rd zone position: Central
4th zone position: Rear right
5th zone position: Front right
1st zone type: Gas - AUX
2nd zone type: Gas - Semi Rapid
3rd zone type: Gas - UR
4th zone type: Gas - Semi Rapid
5th zone type: Gas - AUX
1st zone power: 1.00 kW
2nd zone power: 1.80 kW
3rd zone power: 4.20 kW
4th zone power: 1.80 kW
5th zone power: 1.00 kW
Type of gas burners: Standard
Burner caps: Matt black enamelled
Automatic electronic ignition: Yes
Gas safety valves: Yes

Main Oven Technical Features

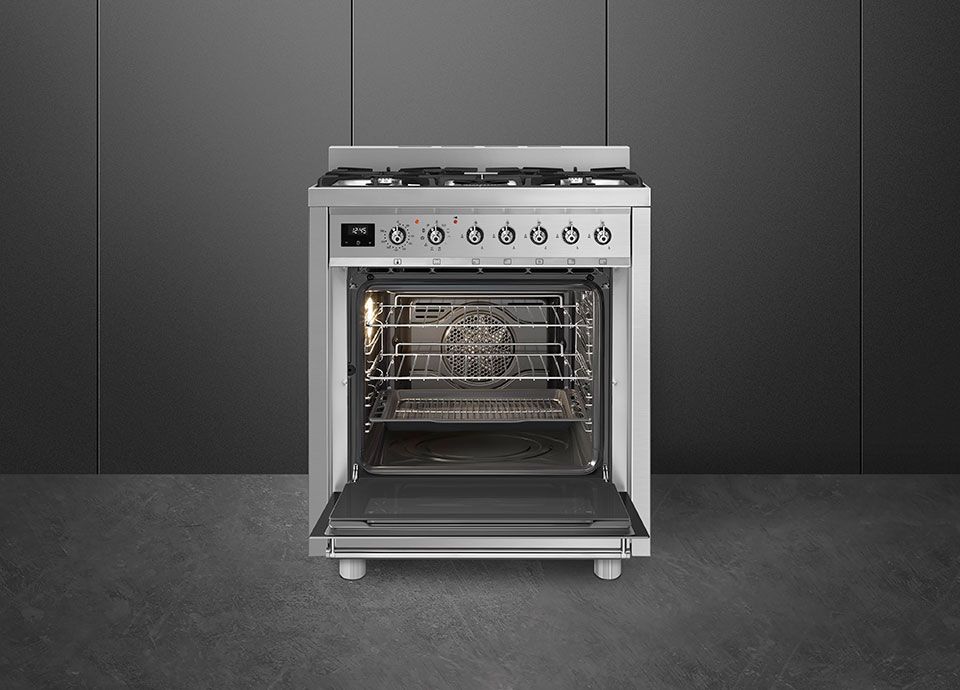

All glass inner door: All glass inner door, a single flat surface which is simple to keep clean. Air cooling system: to ensure a safe surface temperatures. Quadruple glazed: Number of glazed doors. The capacity indicates the amount of usable space in the oven cavity in litres. Enamel interior: The enamel interior of all Smeg ovens have a special antacid lining which helps keep the interior clean by reducing the amount of cooking grease adhering to it. The oven cavity has 5 different cooking levels. The inner door glass: can be removed with a few quick movements for cleaning. Side lights: Two opposing side lights increase visibility inside the oven.
Net volume of the cavity: 70 litres
Cavity material: Easy clean enamel
Light when oven door is open: Yes
No. of shelves: 5
Type of shelves: Metal racks
No. of lights: 1
Light type: Halogen
Light power: 40 W
Fan number: 1
Cooking time setting: Start and Stop
Door opening: Flap down
Removable door: Yes
Full glass inner door: Yes
Removable inner door: Yes
Total no. of door glasses: 4
No.of thermo-reflective door glasses: 3
Door Lock During Pyrolisis: Yes
Safety Thermostat: Yes
Cooling system: Tangential
Heating suspended when door is opened: Yes
Grill type: Electric
Grill elememt: 1700 W
Large grill - Power: 2700 W
Lower heating element power: 1200 W
Upper heating element - Power: 1000 W
Circular heating element - Power: 2000 W
Temperature control: Electro-mechanical

Performance / Energy Label

A: Product drying performance, measured from A+++ to D / G depending on the product family
Energy efficiency class: A
GAS - Energy consumption in fan-forced convection, first cavity: 2.88 MJ
Energy consumption forced air convection (kWh) first cavity: 0.80 KWh
GAS - Energy consumption conventional mode, first cavity: 3.92 MJ
Energy consumption conventional first cavity (kWh): 1.09 KWh

Electrical Connection

Nominal power: 3000 W
Voltage: 220-240 V
Frequency: 50/60 Hz

Gas Connection

Gas connection rating (W): 9600 W
Gas Type: G20 Natural gas

Logistic Information

Dimensions of the product HxWxD (mm): 900x700x600 mm
Width (mm): 700 mm
Product Height (mm): 900 mm
Depth (mm): 600 mm
Net weight (kg): 61.600 kg

Accessories Included

Other gas nozzles included: G30 LPG liquid gas

Accessories included for Main Oven & Hob

Wok stand: 1
Moka stand: 1
Top oven chrome shelf with back stop: 2
Grill mesh: 1
40mm deep tray: 1
Telescopic Guide rails, partial Extraction: 1
