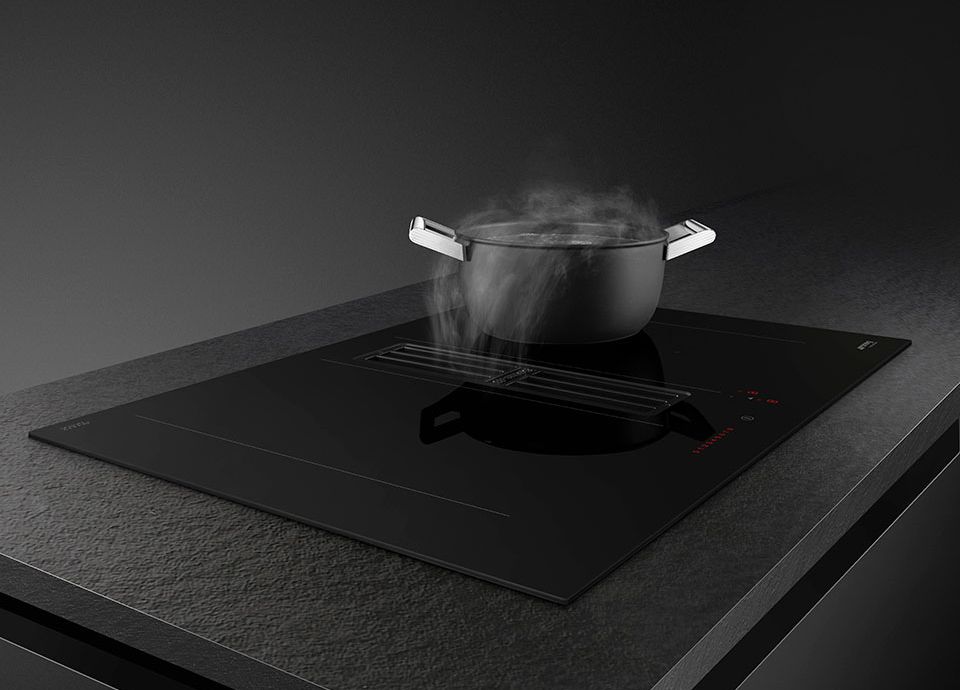

83 cm Classic Induction hob with integrated hood, Matte Black

HOBD382MB2

Name: 83 cm Classic Induction hob with integrated hood, Matte Black HOBD382MB2
Brand: Smeg
SKU: HOBD382MB2

Energy consumption Dimensions

Shop online

Local stockists

Compare

Product code: HOBD382MB2

Advanced hobd that, thanks to cutting-edge technology, combines the functions of a hob and extractor hood in a single structure to optimise space and reduce clutter

Fast cooking and precise temperature control thanks to powerful induction technology
Evo Slider controls visible only when in use: an elegant touch that disappears after cooking, for a clean aesthetic
Autopot detection knows exactly where your pot is and activates the right zone instantly for effortless precision, every time
Large surface created by joining two contiguous zones, perfect for large dishes - MultiZone
Backlit controls with white LEDs for refined aesthetics and discreet visibility
With the Keep Warm function, your food stays perfectly heated, ready to serve whenever you are
Automatic hood adjustment based on cooktop power for always-adequate extraction

Highlights
Features
Accessories
Download

MATTE BLACK FINISH

A sleek Matte black finish joins Smeg’s large appliance range.
This new finish and neutral colourway creates a focal point in any kitchen aesthetic. The tactile texture adds another dimension, along with an air of luxury and sophistication,
Very on-trend, matte black appliances appeal to the fashion-conscious who want to add a bit of fun into their kitchens and stand out from the crowd.

Discover all our matte black appliances

Revolutionising the kitchen

The design of the new Smeg 'Hobd' hood in hob is minimalism in its purest form. A unique piece of technology that conceals a powerful integrated extractor fan, capable of instantly removing odours, without the need for a bulky obtrusive extractor.

Timeless design

With its strict design form, the simple classic aesthetic is timeless - fitting into a contemporary or traditional kitchen setting with ease. The range is made up of a series co-ordinating appliances finished in smart stainless steel with matching controls and handles. The collection comprises ovens, coffee machines, hobs, extractor hoods, dishwashers and wine coolers.

Multizone Operation

Smeg's MultiZone heating zone can be used as two independent cooking zones or combined into a single zone.

Each zone automatically adapts to the size and position of the dishes and is heated only where the pans locate, providing better heat distribution.

AUTO-VENT

Smeg's innovative Auto-Vent system connects the hob to the hood and controls the extraction fan speed automatically to suit the cooking temperature and power settings on the hob itself.

Aesthetics

Aesthetics: Classic

Colour: Matte Black

Finishing: Glass

Glass Type: Ceramic

Material: Glass

Type of control setting: EVO Slider

Control knobs position: Front

Slider: Yes

Slider: White

Glass edge: Straight edge

Pan stands: Stainless steel

Serigraphy colour: Grey

Program / Functions

Total no. of cook zones: 4

No. of induction cook zones: 4

Time-setting options: Automatic switch-off

No. of cooking zones with booster: 4

No. of Flexible zones: 2

Main on/off switch: Yes

Power levels: 9

Type

Product Family: Hob

Dimensions: 83 cm

Type: Induction with integrated hood

Extraction: Expulsion

Built-in: Ultra-low profile or Fully Flushed

Power supply: Electric

Electronic control: Yes

EAN code: 8017709341886

Technical Features

Automatic setting according to pan dimension: Yes

Permanent Automatic Pot Detection with indication of the relative control: Yes

Automatic pan detection: Yes, min 9 cm

Automatic switch off when overflow: Yes

Residual heat indicator: Yes

Protection against accidental start up: Yes

Options

Standard cut out: 490x750 mm

Multizone Option: Yes

Flexible Zone Type: MultiZone

End cooking timer: 4

Pause option: Yes

Minute minder: 1

End of cooking acoustic alarm: Yes

Residual time indicator: Yes

Limited Power Consumption Mode: Yes advance

Limited Power Consumption Mode in W: 2800, 3500, 4500, 7400 W

Show Room Demo Option: Yes

Control Lock / Child Safety: Yes

Keep warm automatic function: Yes

Cleaning option: Yes

Quick start: Yes

Rapid level selection: Yes

Cooking zones

1st zone position: Front left

2nd zone position: Rear left

3rd zone position: Rear right

4th zone position: Front right

1st zone type: Induction - Multizone

2nd zone type: Induction - multizone

1st zone dimensions: 21.0x19.0 cm

2nd zone dimensions: 21.0x19.0 cm

3rd zone dimensions: 21.0x19.0 cm

4th zone dimensions: 21.0x19.0 cm

Left Multizone dimension: 39.0x21.0 cm

Right Multizone dimension: 39.0x21.0 cm

1st zone power: 2.10 kW

2nd zone power: 2.10 kW

3rd zone power: 2.10 kW

4th zone power: 2.10 kW

1st zone booster power: 3.0 kW

2nd zone booster power: 3.00 kW

3rd zone booster power: 3.00 kW

4th zone booster power: 3.00 kW

Booster power left Multizone: 3.70 kW

Booster power right Multizone: 3.70 kW

Performance / Energy Label

Annual Efficiency Consumption (AEChood): 29 kWh/year

Electrical Connection

Plug: No

Nominal power (W): 7620 W

Current: 33 A

Voltage (V): 220-240 V

Voltage 2 (V): 380-415 V

Frequency (Hz): 50/60 Hz

Type of electric cable supplied: Yes, Single and Double phase

Power supply cable length: 120 cm

Standby consumption

Power Consumption in Off mode (Po): 0.49 W

Controls (hood)

Hood control setting: Touch control

Led colour: White

Display: Yes

Programs / Functions (hood)

No. of speeds: 8

Intensive speed: 2

Hood time setting: Delay

Other options: Kit for Recirculation and Extraction included

Auto-Vent: yes

Technical Features (Hood)

Free outlet maximum capacity: 650 m³/h

Motor power: 220 W

No. of filters: 1

Anti-grease filters: Stainless steel

Charcoal filters included: YES, regenerable

Filter replacement indicator: Yes

Speed 1

Extraction rate IEC 61591: 230 m³/h

Noise level IEC 60704-2-13: 49 dBA

Power: 40 W

Speed 2

Extraction rate IEC 61591: 270 m³/h

Noise level IEC 60704-2-13: 51 dBA

Power: 50 W

Speed 3

Extraction rate IEC 61591: 340 m³/h

Noise level IEC 60704-2-13: 55 dBA

Power: 70 W

Speed 4

Extraction rate IEC 61591: 370 m³/h

Noise level IEC 60704-2-13: 60 dBA

Power: 90 W

Speed 5

Extraction rate IEC 61591: 400 m³/h

Noise level IEC 60704-2-13: 62 dBA

Pressure: 500 Pa

Power: 100 W

Speed 6

Extraction rate IEC 61591: 435 m³/h

Noise level IEC 60704-2-13: 63 dBA

Pressure: 550 Pa

Power: 120 W

Speed 7

Extraction rate IEC 61591: 460 m³/h

Noise level IEC 60704-2-13: 65 dBA

Pressure: 600 Pa

Power: 150 W

Speed 8

Extraction rate IEC 61591: 500 m³/h

Noise level IEC 60704-2-13: 68 dBA

Pressure: 620 Pa

Power: 170 W

Intensive speed

Extraction rate (IEC 61591): 540 m³/h

Noise level IEC 60704-2-13: 70 dBA

Power: 180 W

Intensive Speed 2

Extraction rate IEC 61591: 630 m³/h

Noise level IEC 60704-2-13: 73 dBA

Pressure: 630 Pa

Power: 220 W

Performance / Energy Label (hood)

Energy efficiency class ( EEC): A+

Fluid Dynamic Efficiency class (FDEC): A

Grease Filtering Efficiency Class (GFEC): B

Fluid Dynamic Efficiency (FDE): 32.10

Lighting Efficiency (LE): 0.0 lux/W

Grease Filtering Efficiency (GFE): 85.1 %

Air flow at minumum speed (Qmin): 230 m³/h

AIR FLOW AT MAXIMUM SPEED (QMAX): 500 m³/h

Air flow at boost speed (Qboost): 630 m³/h

Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 49 dBA

Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 68 dBA

Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 73 dBA

Time increase factor (F): 0.8

Energy Efficiency Index per first cavity: 44.2

Measured air flow rate at best efficiency point (Qbep): 320 m³/h

Measured air pressure at best efficiency point (Qbep): 502 Pa

Measured electric power input at best efficiency point (Wbep): 139 W

Sound power level at highest setting (Lwa): 68 dBA

Logistic Information

Dimensions of the product HxWxD (mm): 230x830x520 mm

Depth (mm): 520 mm

Width (mm): 830 mm

Product Height (mm): 230 mm

Net weight (kg): 18.000 kg

Gross weight (kg): 25.000 kg

Packed width: 1020 mm

Packaged depth: 760 mm

Height (mm) packed: 480 mm

Dimensions of the packed product (mm): 480x1020x760 mm

Maximum stackability: 4

Type of packaging: Cardboard

Packaging composition - paper & cardboard (kg): 7.263 kg

Packaging composition - polystyrene (kg): 0.000 kg

Packaging composition - wood (kg): 0.000 kg

Packaging composition - plastic (kg): 0.120 kg

Accessories Included

Other accessories: Filtering kit and charcoal filter included

Optional

Accessories, Type: Griddle, Cookers, Hobs

Accessories, Type: Exhaust kit, Hobs

Accessories, Type: Tube kit, Hobs, Hoods

Accessories, Type: Recirculating kit, Hobs

Accessories, Type: Pan stands, Hoods

Accessories, Type: Pan stands, Hoods

Accessories, Type: Pan stands, Hoods

Accessories, Type: Recirculating kit, Hobs, Hoods

Accessories, Type: Pan stands, Hoods

Technical drawing

Download (png)

Instruction manual

User manual (EN) (pdf)

Installation Manual (ALL) (pdf)

Energy Label

Download

Product information sheet

Download

Product sheet

Download

Brochure

Download
