Induction hob with integrated hood Black 80 cm Dolce Stil Novo Aesthetic HOBD682R1

Product Family
Hob
Aesthetics
Dolce Stil Novo
Type
Induction with integrated hood
Dimensions
80 cm
Built-in
Traditional

You might also be interested in:

5 Year extended warranty

This appliance qualifies for a comprehensive Smeg 5-year warranty assistance package covering all parts and labour. Buy with confidence and added peace of mind

This offer is available on purchases made before 31st December 2024. To find out more and to redeem upon purchase, please click below.

  • Highlights
  • Features
  • Accessories
  • Download

DOLCE STIL NOVO AESTHETIC

Dolce Stil Novo presents the ultimate style and embodies all the latest appliance innovations. The play on light and shadow and the technical excellence of the products are the distinctive features of this range.



VIEW THE RANGE

Heavy duty cast Iron Pan Stands

The majority of Smeg gas hobs are supplied with heavy duty cast iron stands, designed to be resistant to high temperatures. They are very robust and can be easily cleaned with detergent and wire wool to prevent deterioration over time.

Revolutionising the kitchen

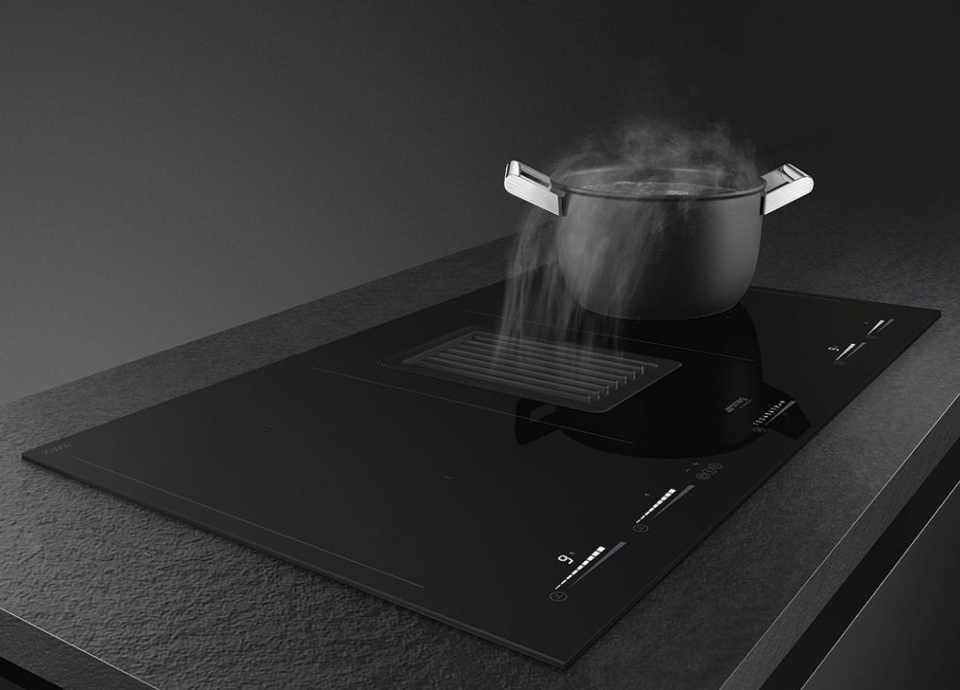

The design of the new Smeg 'Hobd' hood in hob is minimalism in its purest form. A unique piece of technology that conceals a powerful integrated extractor fan, capable of instantly removing odours, without the nead for a bulky obtrustive extractor.

POWERFUL, QUIET OPERATION

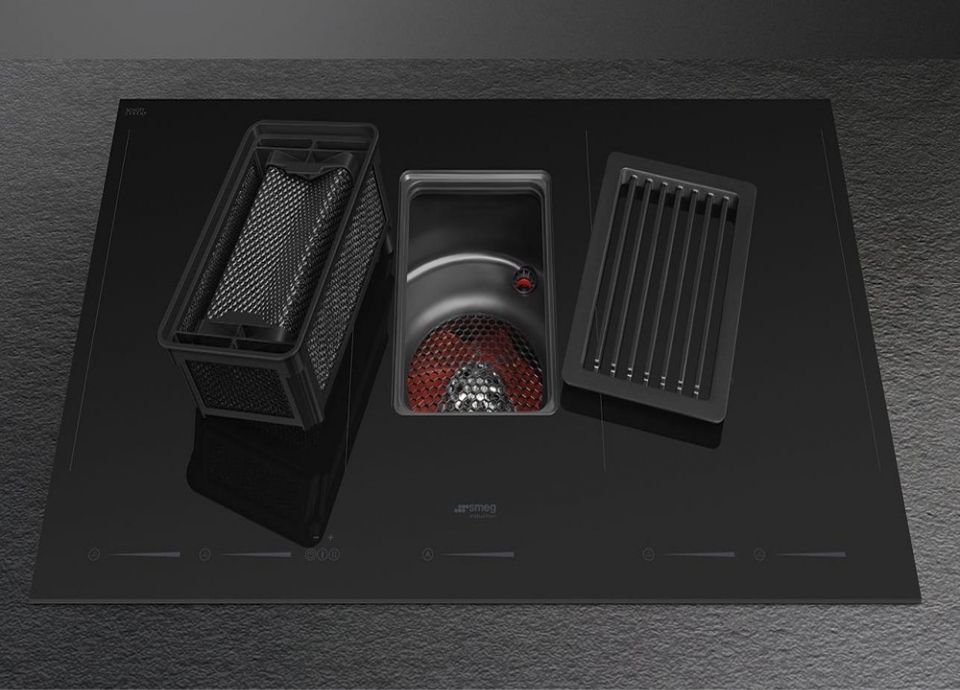

All of Hobd’s energy is derived from its powerful motor: boasting effective performance and low energy consumption rated efficient A+++. Compact in size, it is equipped with a special AquaProof Engine plus two liquid collectors, ensuring the appliance is simple to clean whilst containing accidental spillages.

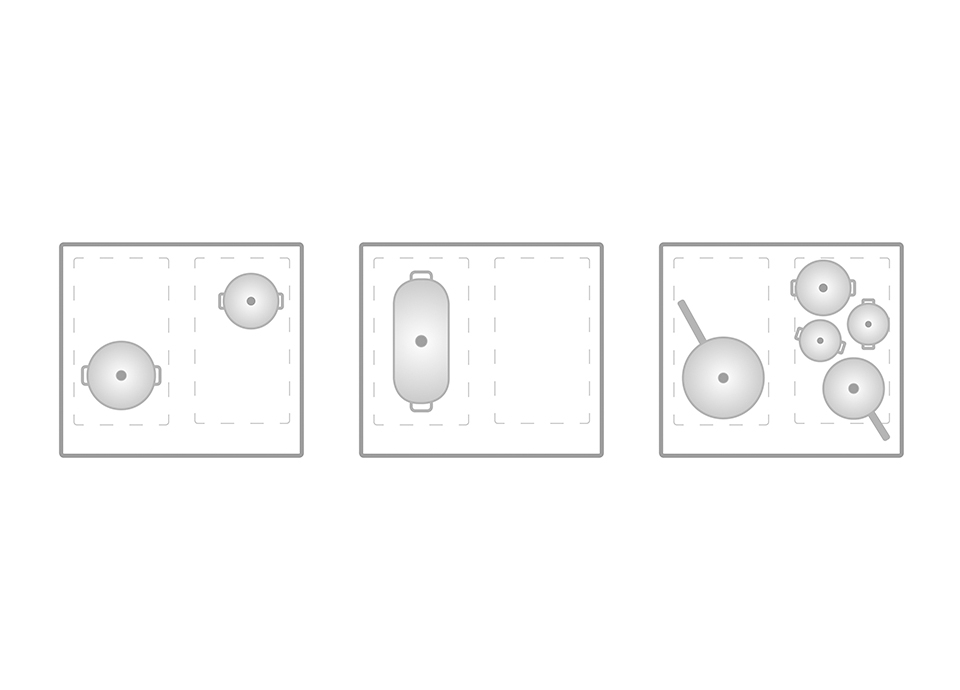

Multizone Operation

Smeg's MultiZone heating zone can be used as two independent cooking zones or combined into a single zone.

Each zone automatically adapts to the size and position of the dishes and is heated only where the pans locate, providing better heat distribution.

Combining design and technology

Smeg's 'Hobd' hood in hob is composed of a single piece of premium glass. Protected by an elegant cast iron grill, the HOBD's extraction system allows the entire surface to appear completely seamless - where pans can be moved freely between positions.

Fast operation

Induction allows for precise temperature control when doing intricate cooking, or simmering for example. Heat is only generated when the pan comes into direct contact of the specific cooking zone, ensuring safety in the presence of children. This helps optimise power consumption, only using the energy needed to heat the pan itself.

Induction is faster than gas cooking taking only a little over a minute to boil a pint of water. Another benefit is that any splashes will not burn onto the hob top and are easily wiped clean making it safe and user friendly.

Watch the video

The Smeg Hobd is a revolutionary combination of a built-in hob and extraction hood, designed for contemporary living.

Watch the video
AUTO-VENT

Smeg's innovative Auto-Vent system connects the hob to the hood and controls the extraction fan speed automatically to suit the cooking temperature and power settings on the hob itself.

NATURAL MATERIALS

Like many natural materials, slight imperfections in metals are to be expected, along with natural discolouration of these materials over time through useage and exposure to sunlight.

Type

Standard installation: Traditional installation in tabletop, suitable for any kitchen sets
Product Family: Hob
Dimensions: 80 cm
Type: Induction with integrated hood
Extraction: Expulsion
Built-in: Traditional
Power supply: Electric
Electronic control: Yes
EAN code: 8017709298692

Aesthetics

Premium individual Slider control for each zone The slider control panel allows you to adjust the power simply by passing your finger across the touch
device. Heavy duty cast iron pan stands: for maximum stability and strength.
Colour: Black
Finishing: Glass
Aesthetics: Dolce Stil Novo
Material: Glass
Glass Type: Ceramic
Type of control setting: Multi Slider
Control knobs position: Front
Slider: Yes
Glass edge: Straight edge
Frame: Yes
Frame colour: Copper
Pan stands: Cast iron
Serigraphy colour: Grey

Programs / Functions

Power booster: option allows the zone to work at full power when very intense cooking is necessary.
Total no. of cook zones: 2
No. of induction cook zones: 4
Time-setting options: Automatic switch-off
No. of cooking zones with booster: 4
No. of Flexible zones: 2
Main on/off switch: Yes
Power levels: 9

Options

Multizone: allows several pans to be used at once, large or small, offering freedom of placement and greater flexibility Quick selection, with one touch cooking begins at the highest level, then automatically reduces after time. Ideal for dishes that require quick boiling and then continued cooking without constant control (eg beef broth). Timer: All ceramic hobs have a timer which automatically ends cooking after a preset time. Time elapsed: shows how long the cooking zone has been in use. Quick Start function: the chosen temperature is reached faster. The heating element works at maximum power until the right temperature is reached. Child lock: some models are fitted with a device to lock the programme/cycle so it cannot be accidentally changed. Keep warm function: Keep warm function keeps the cooked food heated. In this mode the heating zone operates at a minimum capacity for 120 minutes and then turns off automatically. PAUSE_72dpi Melting function, suitable for slowly melting delicate foods such as chocolate or butter. Simmering function: ideal for long-cooking recipes, preventing food from boiling over or sticking to the pan.
Standard cut out: 482-483x763-764 mm
Multizone Option: Yes
Flexible Zone Type: MultiZone
End cooking timer: 4
Pause option: Yes
Minute minder: 1
End of cooking acoustic alarm: Yes
Residual time indicator: Yes
Control Lock / Child Safety: Yes
Keep warm automatic function: Yes
Quick start: Yes
Simmering Function: Yes
Melting/Low temperature cooking function: Yes
Rapid level selection: Yes

Cooking zones

1st zone position: Left
2nd zone position: Right
1st zone type: Induction - Multizone
2nd zone type: Induction - multizone
1st zone dimensions: 23.0x21.0 cm
2nd zone dimensions: 23.0x21.0 cm
3rd zone dimensions: 23.0x21.0 cm
4th zone dimensions: 23.0x21.0 cm
Left Multizone dimension: 46.0x21.0 cm
Right Multizone dimension: 46.0x21.0 cm
1st zone power: 2.10 kW
2nd zone power: 2.10 kW
3rd zone power: 2.10 kW
4th zone power: 2.10 kW
1st zone booster power: 3.70 kW
2nd zone booster power: 3.70 kW
3rd zone booster power: 3.70 kW
4th zone booster power: 3.70 kW
Booster power left Multizone: 3.70 kW
Booster power right Multizone: 3.70 kW

Technical Features

Overfill protection: The special overfill protection shuts down the stove in the presence of overflow of liquids. ... Indication of residual heat: After the glass ceramic hob is switched off the residual heat indicator shows which of the heating zones still remains hot. When the temperature drops below 60 ° C, the indicator goes out.
Automatic setting according to pan dimension: Yes
Permanent Automatic Pot Detection with indication of the relative control: Yes
Automatic pan detection: Yes
Automatic switch off when overflow: Yes
Residual heat indicator: Yes
Protection against accidental start up: Yes

Performance / Energy Label

Annual Efficiency Consumption (AEChood): 25 KWh/year
Hob energy consumption: 194.0 Wh/Kg
1st zone energy consumption: 194.0 Wh/Kg
2nd zone energy consumption: 194.0 Wh/Kg

Electrical Connection

Nominal power (W): 7545 W
Current: 33 A
Voltage (V): 220-240 V
Voltage 2 (V): 380-415 V
Frequency (Hz): 50/60 Hz
Type of electric cable supplied: Yes, Single and Double phase
Power supply cable length: 120 cm

Controls (hood)

Hood control setting: Touch Capacitive
Led colour: White
Display: Yes

Programs / Functions (hood)

No. of speeds: 8
Intensive speed: 2
Other functions: AUTOVENT
Auto-Vent: yes

Technical Features (Hood)

Free outlet maximum capacity: 750 m³/h
Motor power: 220 W
No. of filters: 1
Anti-grease filters: Aluminium
Filter replacement indicator: Yes

Speed 1

Extraction rate IEC 61591: 245 m³/h
Noise level IEC 60704-2-13: 51 dB(A)
Power: 35 W

Speed 2

Extraction rate IEC 61591: 285 m³/h
Noise level IEC 60704-2-13: 55 dB(A)
Power: 45 W

Speed 3

Extraction rate IEC 61591: 350 m³/h
Noise level IEC 60704-2-13: 57 dB(A)
Power: 60 W

Speed 4

Extraction rate IEC 61591: 380 m³/h
Noise level IEC 60704-2-13: 59 dB(A)
Power: 75 W

Speed 5

Extraction rate IEC 61591: 410 m³/h
Noise level IEC 60704-2-13: 62 dB(A)
Pressure: 535 Pa
Power: 85 W

Speed 6

Extraction rate IEC 61591: 445 m³/h
Noise level IEC 60704-2-13: 63 dB(A)
Pressure: 540 Pa
Power: 105 W

Speed 7

Extraction rate IEC 61591: 475 m³/h
Noise level IEC 60704-2-13: 64 dB(A)
Pressure: 545 Pa
Power: 115 W

Speed 8

Extraction rate IEC 61591: 505 m³/h
Noise level IEC 60704-2-13: 65 dB(A)
Pressure: 550 Pa
Power: 125 W

Intensive speed

Extraction rate (IEC 61591): 550 m³/h
Noise level IEC 60704-2-13: 66 dB(A)
Power: 110 W

Intensive Speed 2

Extraction rate IEC 61591: 700 m³/h
Noise level IEC 60704-2-13: 72 dB(A)
Pressure: 560 Pa
Power: 140 W

Performance / Energy Label (hood)

Energy efficiency class ( EEC): A+++
Fluid Dynamic Efficiency class (FDEC): A
Grease Filtering Efficiency Class (GFEC): B
Fluid Dynamic Efficiency (FDE): 40.30
Lighting Efficiency (LE): 0.0 lux/W
Grease Filtering Efficiency (GFE): 85.1 %
Air flow at minumum speed (Qmin): 245 m³/h
AIR FLOW AT MAXIMUM SPEED (QMAX): 505 m³/h
Air flow at boost speed (Qboost): 700 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 51 dB(A)
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 65 dB(A)
Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 72 dB(A)
Power Consumption in Off mode (Po): 0.49 W
Time increase factor (F): 0.5
Energy Efficiency Index per first cavity: 27.5
Measured air flow rate at best efficiency point (Qbep): 359 m³/h
Measured air pressure at best efficiency point (Qbep): 549 Pa
Measured electric power input at best efficiency point (Wbep): 136 W
Sound power level at highest setting (Lwa): 65 dB(A)

Electrical Connections (hood)

Hood frequency: 50-60 Hz

Logistic Information

Dimensions of the product HxWxD (mm): 210x830x520
Depth (mm): 520 mm
Width (mm): 830 mm
Product Height (mm): 210 mm
Net weight (kg): 19.000 kg
Gross weight (kg): 26.000 kg
Packed width: 1020 mm
Packaged depth: 457 mm
Height (mm) packed: 760 mm
Dimensions of the packed product (mm): 760X1020X457
Maximum stackability: 4
Type of packaging: Cardboard
Packaging composition - paper & cardboard (kg): 7.189 kg
Packaging composition - polystyrene (kg): 0.000 kg
Packaging composition - wood (kg): 0.000 kg
Packaging composition - plastic (kg): 0.103 kg

Technical drawing

Energy Label

Product information sheet

Product sheet

Brochure

3D file
