90 cm Ceiling Cooker Hood - Stainless steel Choice of Recirculating or Ducted Extraction Universal KLT9L4X

Product family
Hood
Hood Type
Ceiling Cooker Hoods
Aesthetics
Universal
Colour
Stainless steel
Hood width
90 cm
Energy efficiency class ( EEC)
B
  • Highlights
  • Features
  • Accessories
  • Download

Streamlined style

Ceiling hoods are perfect for open plan kitchen/dining areas with an island unit below.

Whether you have limited headroom, or simply want to leave your kitchen open and clear, ceiling hoods provide an elegant space saving solution in any kitchen and are much less intrusive than conventional hoods.

Ducting or re-circulating

Most Smeg hoods offer the choice of ducting or re-circulating, so you can choose your preferred method.

  • Venting/ducting out provides optimum extraction of cooking fumes by expelling them outside, using a vent kit (available as an optional accessory)
    This hood has 150mm vent outlet, so you can choose between the following options:

SP150 - Simple vent kit for hoods with a 150mm diameter vent outlet
SP150FLAT - Comprehensive vent kit for hoods with a 150mm diameter vent outlet

  • Re-circulating extracts the cooking fumes and passes them through active charcoal filters (available as an optional accessory), recirculating the cleaned air back into the room. To find out which charcoal filter your hood needs, see the accessory tab on the hoods specification.
Intensive extraction

A powerful intensive speed can be selected when quick extraction is needed, whether you’re creating a sizzling stir fry or a preparing an aromatic curry, even the strongest cooking odours will be removed in no time.

Perimeter extraction

This is an extremely efficient extraction process where vapors are drawn in through a restricted area of the hood quickly and then decrease once inside which reduces noise as it limits the vibrations of the filters.

Clean air

The 24h air exchange function makes the hood work for 10 minutes every hour at very low speed and therefore without noise for a total of 24 hours in order to purify the air of the house, with low energy impact.

LED LIGHTING

These lights are long lasting, save money and perfectly illuminate the work surface below. They can be switched on regardless of the fans, and used simply to create ambience lighting in the kitchen.

AUTOMATIC SWITCH OFF

A special setting switches off both the extraction and the lights, after a predefined time, during which the hood keeps on purifying the air until it turns off automatically.

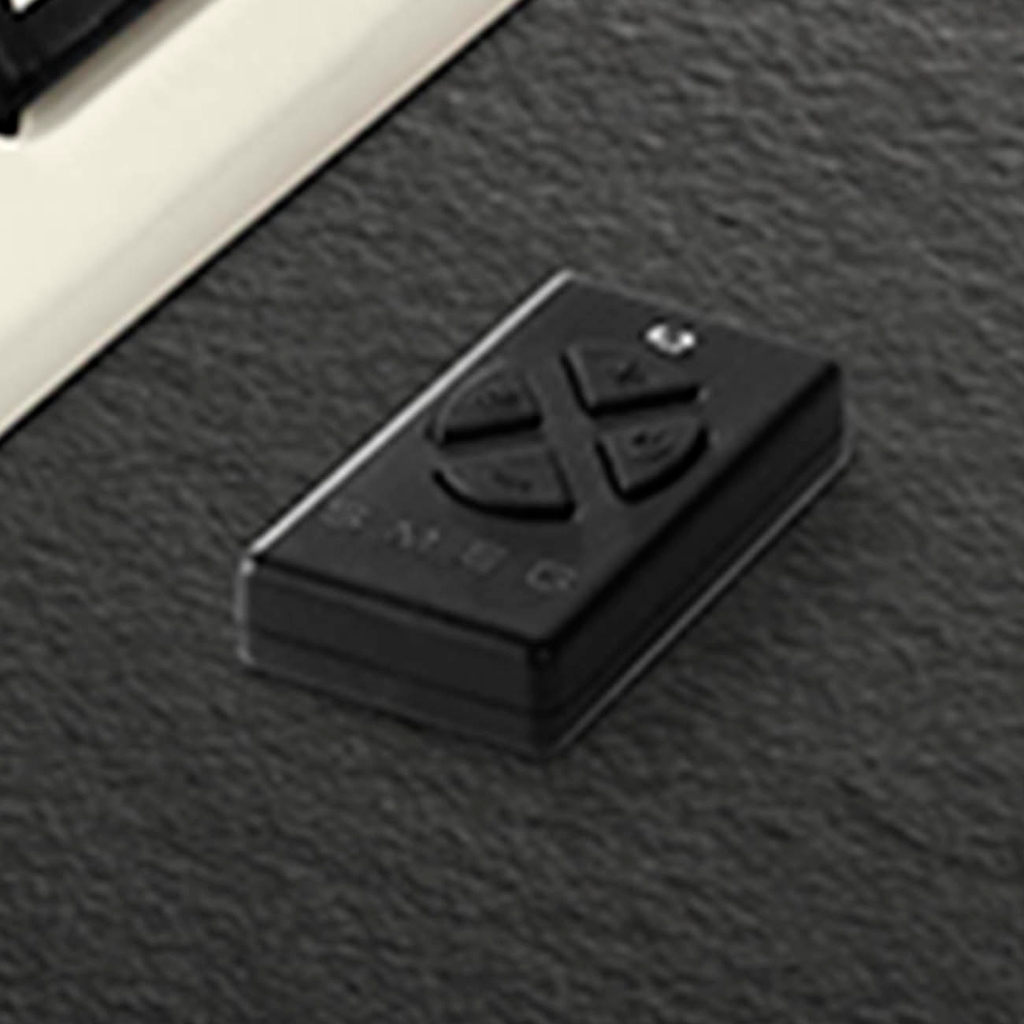

REMOTE CONTROL

Included as standard is a remote control for easy operation of the hood from a distance.

Type

Perimeter extraction panels: very efficient and aid noise reduction.
Product family: Hood
Hood Type: Ceiling Cooker Hoods
Hood width: 90 cm
Extraction: Ducted out or re-circulation possible
Electronic control: Yes
Perimeter extraction: Yes
EAN code: 8017709326227

Aesthetics

Colour: Stainless steel
Finishing: Brushed
Aesthetics: Universal
Design: Ceiling
Material: Stainless steel
Type of steel: Brushed

Programs / Functions

Intensive/turbo setting: when extra fast extraction is required. 24h: When selected this function refreshes the air for c. 10 minutes every hour over a 24 hour period, at minimum speed and an imperceptible noise level. Switch off automatically: A special setting, to run after the end of cooking for a pre-set time and then switch off automatically. ...
No. of speeds: 3
Intensive speed: Yes
24h air filter function: Yes
Time-setting options: Automatic switch-off
Auto-Vent 2.0: Yes

Controls

Control setting: Touch control back-lighted White

Technical Features

Filters: Model has filters to help remove grease from the steam emanating from the pans during cooking. ... Lights: All cooker hoods feature lights to illuminate the cooking area or add to the ambience of the kitchen. Warning light(s): to advise when filters need changing.
No. of lights: 2
Light type: LED
Light power: 7.4 W
Light colour temperature scale (°K): 3000 °K
Light colour temperature range: 3000° - 5700° °K
Free outlet maximum capacity: 610 m³/h
Motor power: 270 W
No. of filters: 3
Anti-grease filters: Aluminium
Filter replacement indicator: Yes
Minimum distance from GAS hob: 650 mm
Minimum distance from ELECTRIC hob: 650 mm
Vent outlet: 150 mm
Non return valve: Yes

Performance / Energy Label

???Class_Arrows_A+++D_B???
Energy efficiency class ( EEC): B
Fluid Dynamic Efficiency class (FDEC): B
Grease Filtering Efficiency Class (GFEC): D
Lighting Efficiency Class (LEC): B
Annual Efficiency Consumption (AEChood): 94 KWh/year
Fluid Dynamic Efficiency (FDE): 25.9
Lighting Efficiency (LE): 25.9 lux/W
Grease Filtering Efficiency (GFE): 72.0 %
Air flow at minumum speed (Qmin): 208 m³/h
Maximum extraction rate: 452 m³/h
Intensive extraction rate: 594 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 48 dBA
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 63 dBA
Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 69 dBA
Power consumption in stand-by mode (Ps): 0.49 W
Time increase factor (F): 1.1
Energy Efficiency Index per first cavity: 68.7
Measured air flow rate at best efficiency point (Qbep): 335 m³/h
Measured air pressure at best efficiency point (Qbep): 630 Pa
Measured electric power input at best efficiency point (Wbep): 226 W
Normal Power of the light system (Wl): 15 W
Average illumination of the light on the cooking surface (Emiddle): 303 lux
Sound power level at highest setting (Lwa): 63 dBA

Electrical Connection

Nominal power: 305 W
Voltage: 220-240 V
Frequency (Hz): 50-60 Hz
Power supply cable length: 1500 mm

Speed 1

Extraction rate IEC 61591: 208 m³/h
Noise level IEC 60704-2-13: 48 dBA
Power: 129 W

Speed 2

Extraction rate IEC 61591: 323 m³/h
Noise level IEC 60704-2-13: 55 dBA
Power: 171 W

Speed 3

Extraction rate IEC 61591: 452 m³/h
Noise level IEC 60704-2-13: 62 dBA
Power: 217 W

Intensive speed

Extraction rate (IEC 61591): 594 m³/h
Noise level IEC 60704-2-13: 69 dBA
Power: 290 W

Logistic Information

Dimensions of the product HxWxD (mm): 200x900x500
Width: 900 mm
Depth (mm): 500 mm
Product Height (mm): 200 mm
Net weight (kg): 20.000 kg
Gross weight (kg): 25.000 kg
Packed width: 990 mm
Packaged depth: 416 mm
Height (mm) packed: 585 mm
Dimensions of the packed product (mm): 585X990X416
Type of packaging: Cardboard
Packaging composition - paper & cardboard (kg): 0.000 kg
Packaging composition - polystyrene (kg): 0.000 kg
Packaging composition - wood (kg): 0.000 kg
Packaging composition - plastic (kg): 0.000 kg
