Hood

Universal

KS110BLE

Product family
Hood
Hood Type
Decorative wall hood
Aesthetics
Universal
Colour
Black
Hood width
110 cm
Energy efficicency class ( EEC)
B
  • Highlights
  • Features
  • Accessories
  • Download

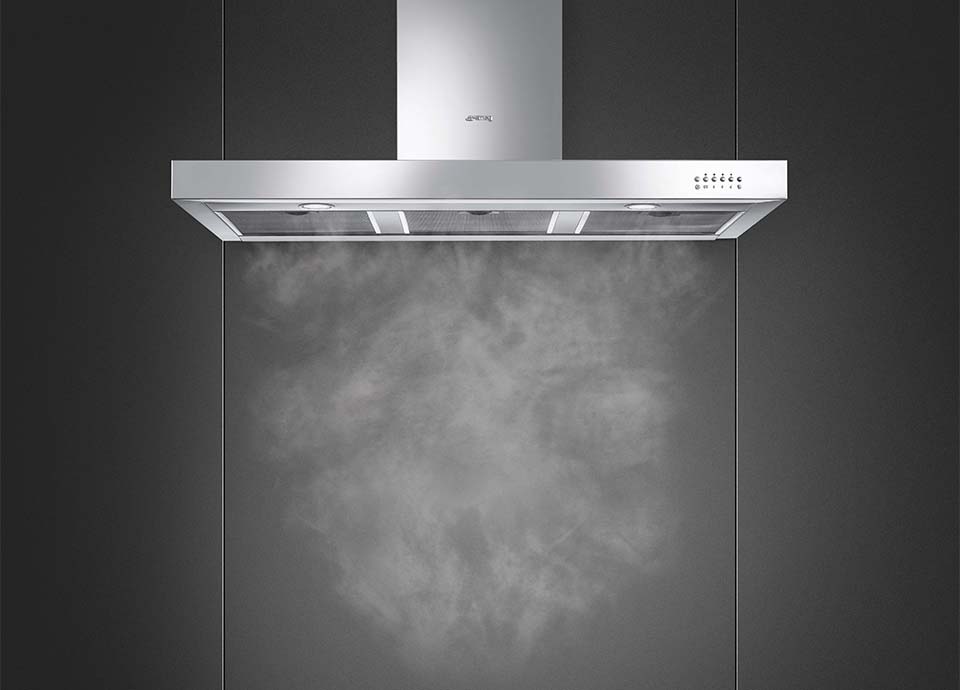

Symphony aesthetic

The aesthetic style of the Symphony range conveys the look and feel of a specialist kitchen in a domestic environment. Characterised by a contemporary and distinctive square design and ergonomic control knobs, this range is a clear extension of the Classic family.

Symphony hoods are available in 110cm width in a choice of stainless steel or black.

Ducting or re-circulating

Most Smeg hoods offer the choice of ducting or re-circulating, so you can choose your preferred method.

Ducting out extracts cooking fumes and expels them outside, using a vent kit (available as an optional accessory) The diameter of the ducting hose should match the vent outlet of the hood (which can be found in the features tab)

SP150 - Simple vent kit for hoods with a 150mm diameter vent outlet
SP150FLAT - Comprehensive vent kit for hoods with a 150mm diameter vent outlet
SP215 - Simple vent kit for hoods with a 120mm diameter vent outlet
SP217 - Comprehensive vent kit for hoods with a 120mm diameter vent outlet

Re-circulating extracts the cooking fumes and passes them through active charcoal filters (available as an optional accessory), recirculating the cleaned air back into the room. To find out which charcoal filter your hood needs, check the accessory tab on the hoods specification.

Type

Product family: Hood
Hood Type: Decorative wall hood
Hood width: 110 cm
Extraction: Expulsion
Electronic control: Yes
EAN code: 8017709201845

Aesthetics

Colour: Black
Aesthetics: Universal
Design: T flat
Material: Painted material
Type of steel: Brushed

Controls

Control setting: Electronic buttons

Programme / Functions

Intensive/turbo setting: when extra fast extraction is required. Switch off automatically: A special setting, to run after the end of cooking for a pre-set time and then switch off automatically.
No. of speeds: 3
Intensive speed: Yes
Time-setting options: Automatic switch-off

Technical Features

Filters: Model has filters to help remove grease from the steam emanating from the pans during cooking. Lights: All cooker hoods feature lights to illuminate the cooking area or add to the ambience of the kitchen. Warning light(s): to advise when filters need changing.
No. of lights: 2
Light type: LED
Light power: 1 W
Light color temperature scale (°K): 4000 °K
Free outlet maximum capacity: 800 m³/h
Motor power: 275 W
No. of filters: 3
Anti-grease filters: Aluminium
Filter replacement indicator: Yes
Minimum distance from GAS hob: 750 mm
Vent outlet: 150 mm
Minimum distance from ELECTRIC hob: 650 mm
Non return valve: Yes

Performance / Energy Label

B: Product energy rating, measured from A+++ to D / G depending on the product family.
Energy efficicency class ( EEC): B
Fluid Dynamic Efficiency class (FDEC): B
Grease Filtering Efficiency Class (GFEC): C
Lighting Efficiency Class (LEC): A
Annual Efficiency Consumption (AEChood): 62 kWh/a
Fluid Dynamic Efficiency (FDE): 27.9
Lighting Efficiency (LE): 84.1 lux/W
Grease Filtering Efficiency (GFE): 78.7 %
Air flow at minumum speed (Qmin): 295 m³/h
Air flow at maximum speed (Qmax): 513 m³/h
Air flow at boost speed (Qboost): 702 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 51 dB(A)
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 64 dB(A)
Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 72 dB(A)
Power consumption in stand-by mode (Ps): 0.49 W
Time increase factor (F): 1.00
Energy Efficiency Index per first cavity: 58.2
Measured air flow rate at best efficiency point (Qbep): 373 m³/h
Measured air pressure at best efficiency point (Qbep): 430 Pa
Measured electric power input at best efficiency point (Wbep): 160 W
Normal Power of the light system (Wl): 2 W
Average illumination of the light on the cooking surface (Emiddle): 370 lux
Sound power level at highest setting (Lwa): 64 dB(A)

Electrical Connection

Nominal power: 278 W
Voltage: 220-240 V
Frequency (Hz): 50-60 Hz

Speed 1

Extraction rate IEC 61591: 295 m³/h
Noise level IEC 60704-2-13: 51 dB(A)
Power: 207 W

Speed 2

Extraction rate IEC 61591: 395 m³/h
Noise level IEC 60704-2-13: 58 dB(A)
Power: 236 W

Speed 3

Extraction rate IEC 61591: 513 m³/h
Noise level IEC 60704-2-13: 64 dB(A)
Power: 250 W

Intensive speed

Extraction rate (IEC 61591): 702 m³/h
Noise level IEC 60704-2-13: 72 dB(A)
Power: 314 W

Logistic Information

Dimensions of the product (mm): 1142x1100x500
Width: 1100 mm
Depth (mm): 500 mm
Product Height (mm): 1142 mm
