Taps Universal MID1CR

  • Highlights
  • Features
  • Accessories
  • Download

The MID1CR mixer tap combines both hot and cold water creating the perfect water temperature for your needs. The tap features a flexible pull out spray which can be used in order to target difficult to reach parts of pots and pans.

The swivel spout is perfect for enabling the water to be directed into the right location In to the sinks.

The aerator adds air into the streams of water from the tap which uses just 6 litres of water per minute, compared to 15 litres without an aerator, saving you water and money.

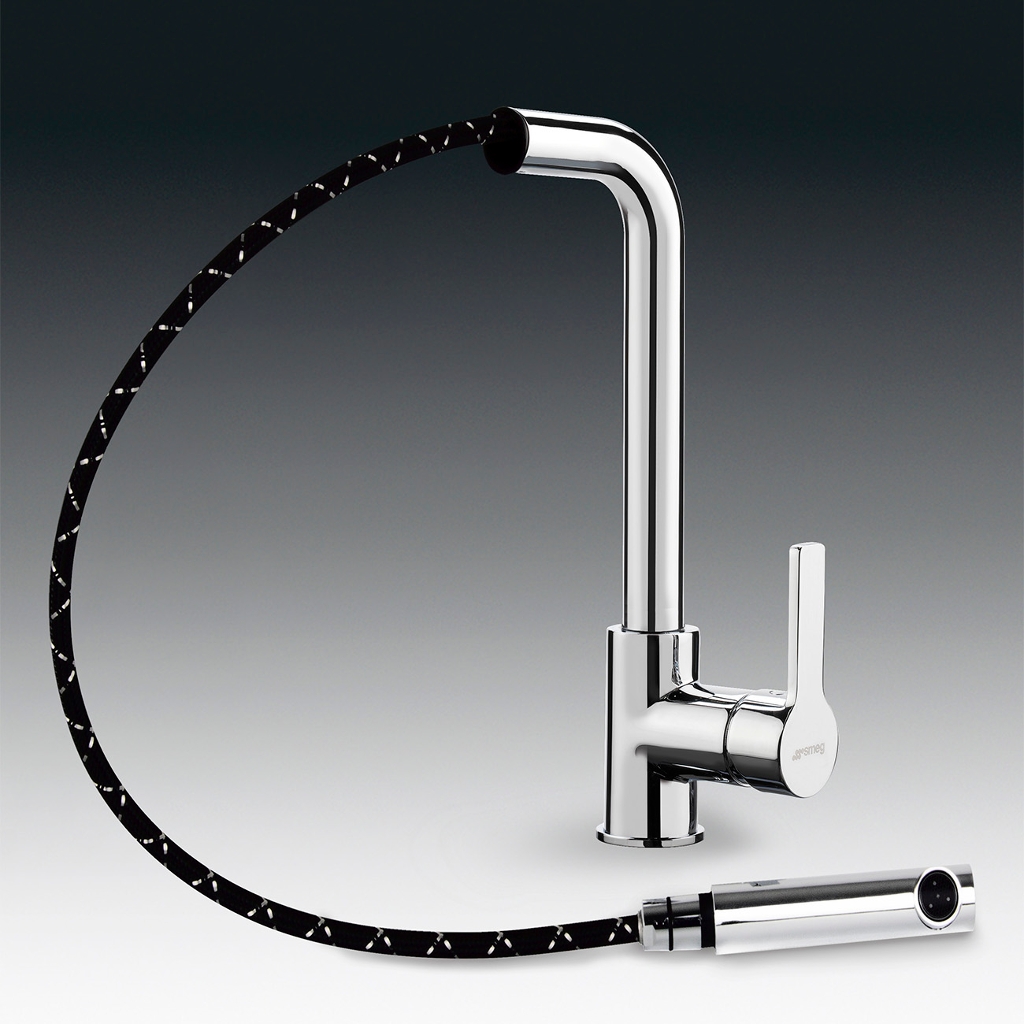

PULL OUT SPRAY

This tap has a pull out spray which can be used in order to target difficult to reach parts of pots and pans or to simply rinse down vegetables with ease.



WATER SAVING

Some Smeg taps offer water saving cartridges which reduce water consumption by 50%, sufficient for cooking and cleaning activities.

ENERGY SAVING

Smeg taps with energy saving cartridges only dispense cold water when depressing centrally. To obtain hot water simply turn the lever further left.

AERATOR

The aerator adds air into the streams of water from the tap. Using an aerator uses 6L of water per minute, compared to 15L without -saving money and water.

MIXER TAPS

These taps combine both hot and cold water creating the perfect water temperature for your needs.

Type

Swivel spout rotation 180°
Product Family: Taps
Material: Brass
Swivelling spout: Yes
Swivelling spout rotation: 180 °
EAN code: 8017709173609

Aesthetics

The extractable handshower allows to increase the range of action of the tap and it is extremely versatile, practical and comfortable.
Colour: Chrome
Finishing: Gloss
Aesthetics: Universal
Tap type: Single lever
Handshower: Extractable
Spout type: L spout
Jet type: Single jet
Flexible hoses number: 2
Aerator: Yes

Technical Features

ESC: with the ESC Energy Saving Cartridge system the control lever positioned in the middle dispenses only cold water, and not 50% of hot and 50% of cold. To obtain hot water, turn the lever further to the left. Thus the use does not operate the boiler. WSC: with the WSC Water Saving Cartridge the control lever stops halfway, causing 50% of the water (sufficient for normal cooking activities) to be dispensed from the mixer to save water consumption.
Tap type: Yes
Flexible hoses lenght: 400 mm
Flexible hoses connection: 3/8 "
Ceramic disc cartridge type: 35 Ø
Maximum pressure: 5 bar
Minimum pressure: 1 bar
Optimal pressure: 3 bar
Tap hole diameter: 35 mm
Characteristics: ESC, WSC

Logistic Information

Product Height (mm): 325 mm
Net weight (kg): 1.700 kg
Gross weight (kg): 2.500 kg
Packed width: 400 mm
Packaged depth: 200 mm
Height (mm) packed: 85 mm
Dimensions of the packed product (mm): 85X400X200
Water production (l/min): 12 l

Technical drawing

Product sheet

Brochure

3D file
