Hob Dolce Stil Novo PV695LCNR

Product Family
Hob
Aesthetics
Dolce Stil Novo
Type
Gas
Dimensions
90 cm
Built-in
Traditional

You might also be interested in:

5 Year extended warranty

This appliance qualifies for a comprehensive Smeg 5-year warranty assistance package covering all parts and labour. Buy with confidence and added peace of mind

This offer is available on purchases made before 30th June 2024. To find out more and to redeem upon purchase, please click below.

  • Highlights
  • Features
  • Accessories
  • Download

DOLCE STIL NOVO AESTHETIC

Dolce Stil Novo presents the ultimate style and embodies all the latest appliance innovations. The play on light and shadow and the technical excellence of the products are the distinctive features of this range.



VIEW THE RANGE

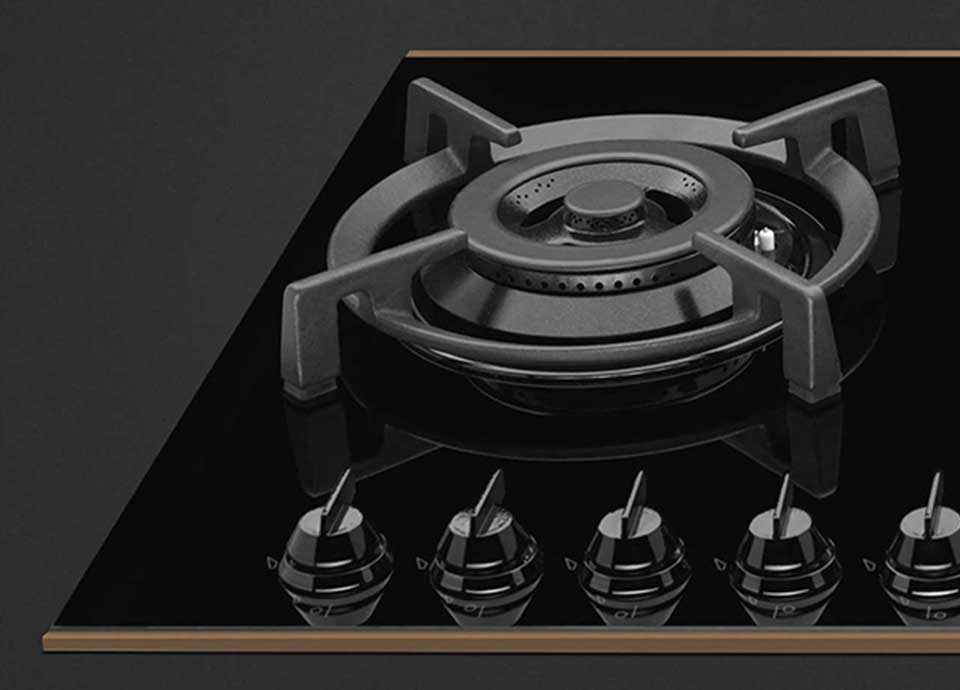

ULTRA RAPID BURNERS

These powerful burners offer up to 5.00kW power and offer 3 different configurations: a triple flame burner or a dual flame burner with a single control, or a dual flame 3-way burner. Composed of an auxiliary and a rapid burner, its 2 controls allow both parts of the burner to work together or independently.

CERAMIC GLASS

Ceramic glass is able to withstand heat above 800˚C so it is extremely robust and durable. Composed of a single glass plate measuring only 4 to 8mm, this type of glass is resistant to impact and wear.

NATURAL MATERIALS

Like many natural materials, slight imperfections in metals are to be expected, along with natural discolouration of these materials over time through useage and exposure to sunlight.

SAFETY VALVES

All Smeg gas hobs include safety valves as standard, the valves on the burner cut off the gas flow if the flame is accidentally exitinguished. In this event, the gas feeder valve shuts off immediately, regardless of the position of the control.

Type

Standard installation: Traditional installation in tabletop, suitable for any kitchen sets
Product Family: Hob
Dimensions: 90 cm
Type: Gas
Built-in: Traditional
Power supply: Gas
EAN code: 8017709222161

Aesthetics

Knobs control Reinforced base: A reinforced base, developed exclusively by Smeg, consists of a steel layer fixed to the underside of the glass surface of all gas on glass hobs. Heavy duty cast iron pan stands: for maximum stability and strength.
Colour: Black
Finishing: Glass
Aesthetics: Dolce Stil Novo
Components finishing: Copper
Material: Glass
Glass Type: Ceramic
Controls colour: Black
Type of control setting: Control knobs
Control knobs position: Front
No. of controls: 5
Glass on Steel: Yes
Pan stands: Cast iron
Burner Coating: Black Ceram
Serigraphy colour: Grey

Programs / Functions

Total no. of cook zones: 5
No. of gas cook zones: 5

Options

Small cut-out for easy installation
Standard cut out: 482-486x844-848 mm

Cooking zones

Ultra rapid burners: Powerful ultra rapid burners offer up to 5kw of power.
1st zone position: Left
2nd zone position: Rear centre
3rd zone position: Front centre
4th zone position: Rear right
5th zone position: Front right
1st zone type: Gas - UR
2nd zone type: Gas - Semi Rapid
3rd zone type: Gas - Semi Rapid
4th zone tipe: Gas - Rapid
5th zone type: Gas - AUX
1st zone power: 6.00 kW
2nd zone power: 1.70 kW
3rd zone power: 1.70 kW
4th zone power: 2.60 kW
5th zone power: 1.10 kW

Technical Features

Gas Type: G20 Natural gas
Gas safety valves: Yes
Automatic Ignition: Yes

Electrical Connection

Gas connection rating (W): 13100 W
Nominal power (W): 1 W
Voltage (V): 220-240 V
Frequency (Hz): 50/60 Hz
Power supply cable length: 120 cm

Logistic Information

Dimensions of the product HxWxD (mm): 102x900x510
Depth (mm): 510 mm
Width (mm): 900 mm
Product Height (mm): 102 mm
Net weight (kg): 19.300 kg
Gross weight (kg): 22.700 kg
Packed width: 1105 mm
Packaged depth: 610 mm
Height (mm) packed: 175 mm
Dimensions of the packed product (mm): 175X1105X610
Maximum stackability: 15
Type of packaging: Cardboard
Packaging composition - paper & cardboard (kg): 0.000 kg
Packaging composition - polystyrene (kg): 1.270 kg
Packaging composition - wood (kg): 0.000 kg
Packaging composition - plastic (kg): 0.033 kg

Accessories Included

Cast iron wok support: 1
Other gas nozzles included: G30 GPL Liquid gas
Other gas connections provided: Conical

Technical drawing

Instruction manual

Product information sheet
