Hob Classic PX364LMB

Product Family
Hob
Aesthetics
Classic
Type
Gas
Dimensions
60 cm
Built-in
Traditional
  • Highlights
  • Features
  • Accessories
  • Download

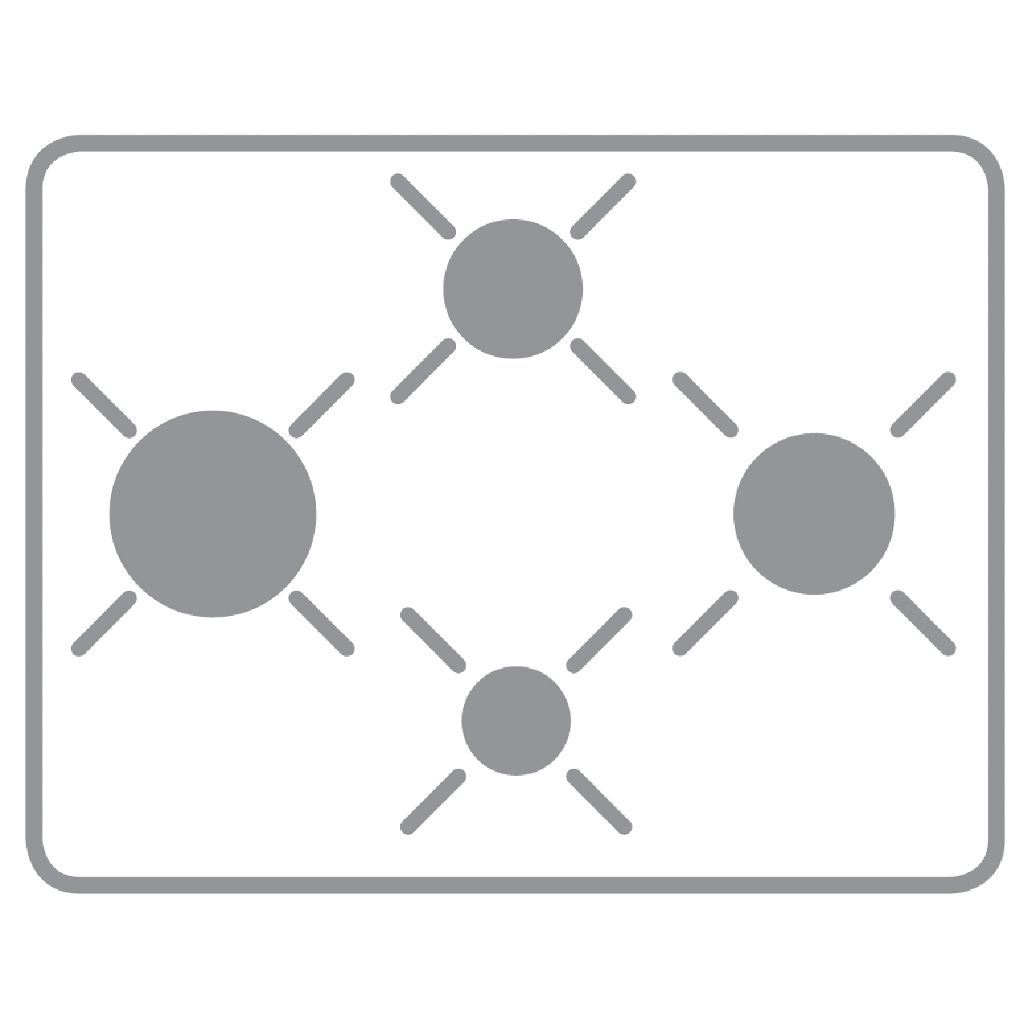

DIAMOND LAYOUT

This hob has a 'diamond' configuration, which provides optimum spacing for larger pans

ULTRA RAPID BURNERS

These powerful burners can offer up to 5.00kW power on some models and offer 3 different configurations: a triple flame burner or a dual flame burner with a single control, or a dual flame 3-way burner. Composed of an auxiliary and a rapid burner, its 2 controls allow both parts of the burner to work together or independently.

SAFETY VALVES

All Smeg gas hobs include safety valves as standard, the valves on the burner cut off the gas flow if the flame is accidentally exitinguished. In this event, the gas feeder valve shuts off immediately, regardless of the position of the control.

Type

Standard installation: Traditional installation in tabletop, suitable for any kitchen sets
Product Family: Hob
Dimensions: 60 cm
Type: Gas
Built-in: Traditional
Power supply: Gas
EAN code: 8017709321611

Aesthetics

Knobs control Heavy duty cast iron pan stands: for maximum stability and strength.
Colour: Matte Black
Finishing: Matte
Aesthetics: Classic
Material: Enamelled
Controls colour: Matt Black
Type of control setting: Control knobs
Control knobs position: Front
No. of controls: 4
Pan stands: Cast iron
Burners: Smeg Contemporary
Burner Material: Aluminium
Burner Coating: Black Ceram
Serigraphy colour: Silver

Programs / Functions

Total no. of cook zones: 4
No. of gas cook zones: 4

Options

CUT_OUT_STANDARD_72dpi
Standard cut out: 478-482x555-560 mm

Cooking zones

Ultra rapid burners: Powerful ultra rapid burners offer up to 5kw of power.
1st zone position: Left
2nd zone position: Rear centre
3rd zone position: Front centre
4th zone position: Right
1st zone type: Gas - UR
2nd zone type: Gas - Semi Rapid
3rd zone type: Gas - AUX
4th zone tipe: Gas - Rapid
1st zone power: 3.50 kW
2nd zone power: 1.80 kW
3rd zone power: 1.10 kW
4th zone power: 2.60 kW

Technical Features

Gas Type: G20 Natural gas
Gas safety valves: Yes
Automatic Ignition: Yes

Electrical Connection

Gas connection rating (W): 9000 W
Nominal power (W): 1 W
Voltage (V): 220-240 V
Frequency (Hz): 50/60 Hz
Type of electric cable: Single phase
Power supply cable length: 120 cm

Logistic Information

Dimensions of the product HxWxD (mm): 40x600x510
Depth (mm): 510 mm
Width (mm): 600 mm
Product Height (mm): 40 mm
Net weight (kg): 13.100 kg
Gross weight (kg): 13.800 kg
Packed width: 650 mm
Packaged depth: 520 mm
Height (mm) packed: 145 mm
Dimensions of the packed product (mm): 145X650X520
Maximum stackability: 15
Type of packaging: Shrinkwrap
Packaging composition - paper & cardboard (kg): 0.242 kg
Packaging composition - polystyrene (kg): 0.414 kg
Packaging composition - wood (kg): 0.000 kg
Packaging composition - plastic (kg): 0.276 kg

Accessories Included

Other gas nozzles included: G30 GPL Liquid gas
Other gas connections provided: Conical
