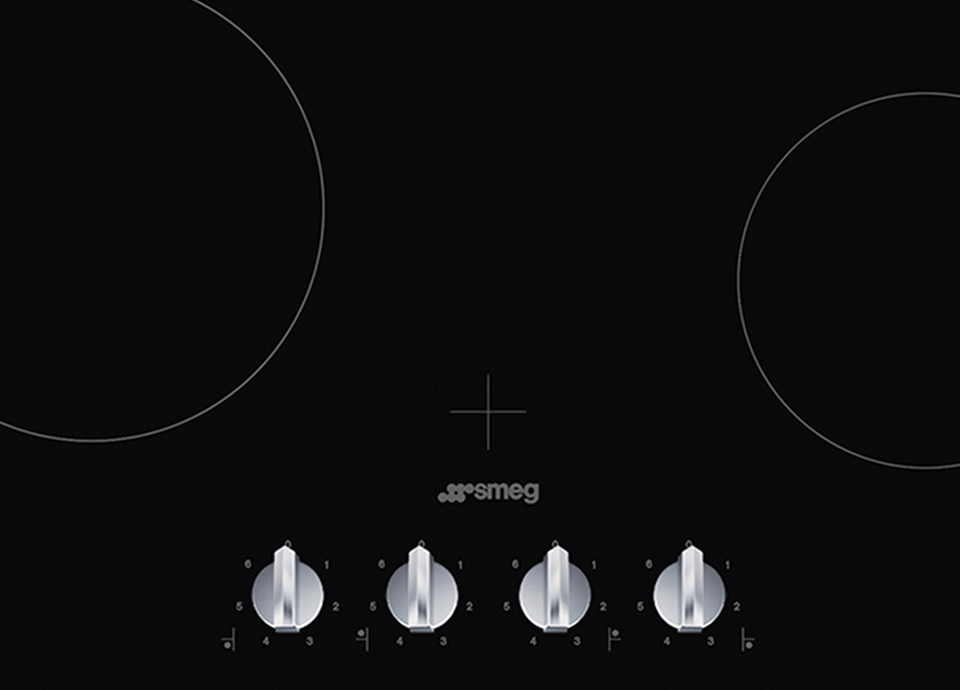

Hob Cucina SE364TDM

Product Family
Hob
Aesthetics
Cucina
Type
Ceramic
Dimensions
60 cm
Built-in
Ultra-low profile or Fully Flushed
  • Highlights
  • Features
  • Download

CUCINA CONTROL KNOBS

Ergonomic and simplistic Cucina control knobs replace the traditional touch controls found on induction hobs, allowing precise and instant flame adjustment, for excellent cooking results.

HARD WEARING GLASS

A hard wearing black glass is featured throughout the induction and ceramic range, offering extreme resistance to heat as well as being easy to maintain.

RESIDUAL HEAT INDICATORS

With safety in mind, residual heat indicators on each of the zones show when the hob is still too hot to touch.

Type

Glass ceramic: The base of the hob is made glass ceramic. Heating is performed by the heating elements Hi-Light.
Product Family: Hob
Dimensions: 60 cm
Type: Ceramic
Built-in: Ultra-low profile or Fully Flushed
Power supply: Electric
EAN code: 8017709240899

Aesthetics

Knobs control
Colour: Black
Finishing: Glass
Aesthetics: Cucina
Material: Glass
Glass Type: Ceramic
Controls colour: Silver
Type of control setting: Control knobs
Control knobs position: Front
No. of controls: 4
Glass edge: Straight edge
Serigraphy colour: Grey

Programs / Functions

Total no. of cook zones: 4
No. of ceramic cook zones: 4
Power levels: 6

Options

Standard cut out: 490x560 mm

Cooking zones

1st zone position: Front left
2nd zone position: Rear left
3rd zone position: Rear right
4th zone position: Front right
1st zone type: Ceramic - single
2nd zone type: Ceramic - single
3rd zone type: Ceramic - single
4th zone tipe: Ceramic - single
1st zone dimensions: Ø 18.4 cm
2nd zone dimensions: Ø 14.8 cm
3rd zone dimensions: Ø 18.4 cm
4th zone dimensions: Ø 14.8 cm
1st zone power: 1.80 kW
2nd zone power: 1.20 kW
3rd zone power: 1.80 kW
4th zone power: 1.20 kW

Technical Features

Overheat protection: The safety system that automatically turns off the hob in case of overheating of the control unit. Indication of residual heat: After the glass ceramic hob is switched off the residual heat indicator shows which of the heating zones still remains hot. When the temperature drops below 60 ° C, the indicator goes out.
Automatic switch off when overheat: Yes
Residual heat indicator: Yes

Performance / Energy Label

Hob energy consumption: 194.3 Wh/Kg
1st zone energy consumption: 200.5 Wh/Kg
2nd zone energy consumption: 194.5 Wh/Kg
Energy consumption zone 3: 188.7 Wh/Kg
Energy consumption zone 4: 193.6 Wh/Kg

Electrical Connection

Nominal power (W): 6000 W
Current: 18 A
Voltage (V): 220-240 V
Voltage 2 (V): 380-415 V
Frequency (Hz): 50/60 Hz
Type of electric cable: Double universal
Type of electric cable supplied: Yes, Three and Single/Two-phase
Power supply cable length: 150 cm

Logistic Information

Dimensions of the product HxWxD (mm): 50x600x510
Depth (mm): 510 mm
Width (mm): 600 mm
Product Height (mm): 50 mm
Net weight (kg): 9.900 kg
Gross weight (kg): 11.300 kg
Packed width: 665 mm
Packaged depth: 575 mm
Height (mm) packed: 130 mm
Dimensions of the packed product (mm): 130X665X575
Maximum stackability: 15
Type of packaging: Cardboard
Packaging composition - paper & cardboard (kg): 1.015 kg
Packaging composition - polystyrene (kg): 0.382 kg
Packaging composition - wood (kg): 0.000 kg
Packaging composition - plastic (kg): 0.033 kg
