New

Built-in 45 cm Linea Wine Cooler

Black CVI120B3E

Name: Built-in 45 cm Linea Wine Cooler Black CVI120B3E
Brand: Smeg
SKU: CVI120B3E

Energy consumption Dimensions

Shop online

Local stockists

Compare

Product code: CVI120B3E

The activated charcoal air filter ensures excellent quality of the air and is easy to maintain
LED lights ensure perfect multi-level visibility inside the wine cooler. Thanks to the E MOTION Electronic Opening System, a simple touch of the door activates the lighting - LED lights
The innovative E MOTION Electronic Opening System allows convenient opening with a simple touch of the door - E MOTION Electronic Opening System
The UV-protected door glass protects the bottles from the passage of light into the wine cooler for impeccable storage
Telescopic sliding guides for easy extraction of wine bottles
Touch display for an easy and accurate temperature management inside the refrigerated compartment - Touch Display
The low-vibration compressor avoids exposing the bottles to prolonged vibrations, which could compromise the quality of the wine

Highlights
Features
Download

Electronic Door Opening Sytem

Activated by a light touch on the glass, the E motion electronic opening system unlocks the door smoothly, delivering effortless access even when your hands are full.

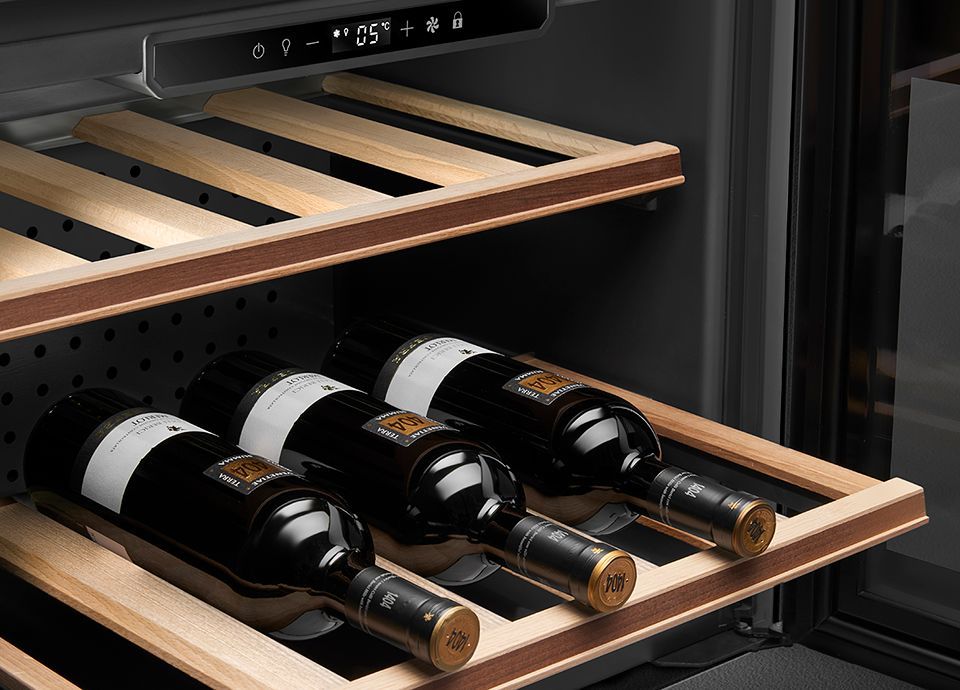

Spacious & Flexible Shelves

The wine cooler features removable, sliding beech shelves, a homage to noble winemaking traditions.

The interior features a single, carefully engineered compartment with discreet internal touch controls. The layout has been intelligently proportioned to accommodate a variety of bottle shapes, with a total capacity of up to 20 bottles.

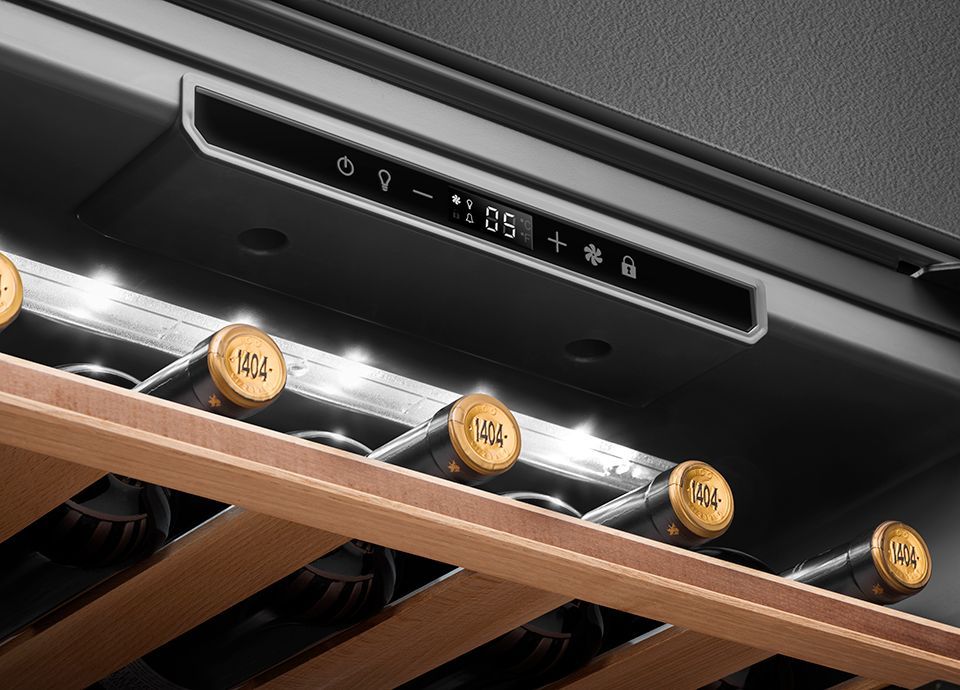

Controlled Luminosity

The glass protects against damaging UV rays for impeccable storage, whilst the crisp LED lighting ensures perfect multi-level visibility inside the wine cooler.

Protection Against Vibration

Even the slightest vibrations can affect a wine's evolution, making stable storage essential. The low-vibration compressor protects your collection from prolonged movement, preserving the wine's integrity and character over time.

Aesthetics

Aesthetics: Linea

Colour: Black

Finishing: Gloss

Glass colour: Black

Door: Full glass

Side material: Painted metal sheet

Type

Installation: Built-in

Built-In Niche: 45 cm

Cooling type: Fan assisted

Defrost: Automatic

Hinge type: Variable hinge

Hinge position: Right

Reversible door: Yes

EAN code: 8017709356415

Reference width: Until 60

Reference height: Until 100

Technical Features

Anti-UV door glass: Yes

Adjustable temperature zones: 1

Independent cooling systems: 1

Number of door glasses: 2

Door opening type: With E MOTION electronic opening system

Temperature range: 5-20 °C

Integrated heating element: Yes

Type of temperature control: Electronic

Number of compressors: 1

Compressor type: Low vibration compressor

Metal panel on the back of the fridge: Metal

Wine cooler compartment features

Max Capacity (bottles 0,75lt): 20

Number of removable shelves: 2

Number of fixed shelves: 1

Shelves material: Beech

Removable shelves on telescopic guide rails: Yes

Type of internal light: Led activated with EMOTION system

Air filter: Activated charcoal filter

Programs / Functions

Controls: Internal, in the compartment

Control setting: Touch control

Display: LED

Power on lamp: Yes

Functions display: Temperature alarm, Temperature value

Door open alarm: Yes

Fan forced ON: Yes

Lighting forced ON: In a maximum period

Control lock: Yes

Temperature Alarm: Yes

Performance / Energy Label

Annual energy consumption: 100 kWh/year

Energy efficiency class: F

Airborne acoustical noise emission class: C

Total volume: 56 l

Sum of the volumes of the chill compartment(s) and the unfrozen compartment(s): 56 l

Climatic class: SN, N, ST

EEI: 124 %

Noise level: 37 dB(A) re 1 pW

Electrical Connection

Nominal power: 40 W

Current: 0.4 A

Voltage (V): 220-240 V

Frequency (Hz): 50 Hz

Plug: (F;E) Schuko

Power supply cable length: 180 cm

Logistic Information

Dimensions of the product HxWxD (mm): 457x596x560

Width: 596 mm

Product width with maximum doors opening: 607 mm

Depth without handle: 560 mm

Height with feet: 457 mm

Net weight (kg): 28.500 kg

Gross weight (kg): 33.200 kg

Packed width: 680 mm

Packaged depth: 690 mm

Height (mm) packed: 740 mm

Dimensions of the packed product (mm): 740x680x690

Maximum stackability: 4

Type of packaging: Cardboard

Packaging composition - paper & cardboard: 1.814 kg

Packaging composition - polystyrene (kg): 1.777 kg

Packaging composition - wood (kg): 1.000 kg

Packaging composition - plastic (kg): 0.103 kg

Technical drawing

Download (png)

Instruction manual

User manual (EN) (pdf)

Other Instructions (ALL) (pdf)

Warranty

Warranty certificate (EN) (pdf)

Energy Label

Download

Product information sheet

Download

Product sheet

Download

Brochure

Download
