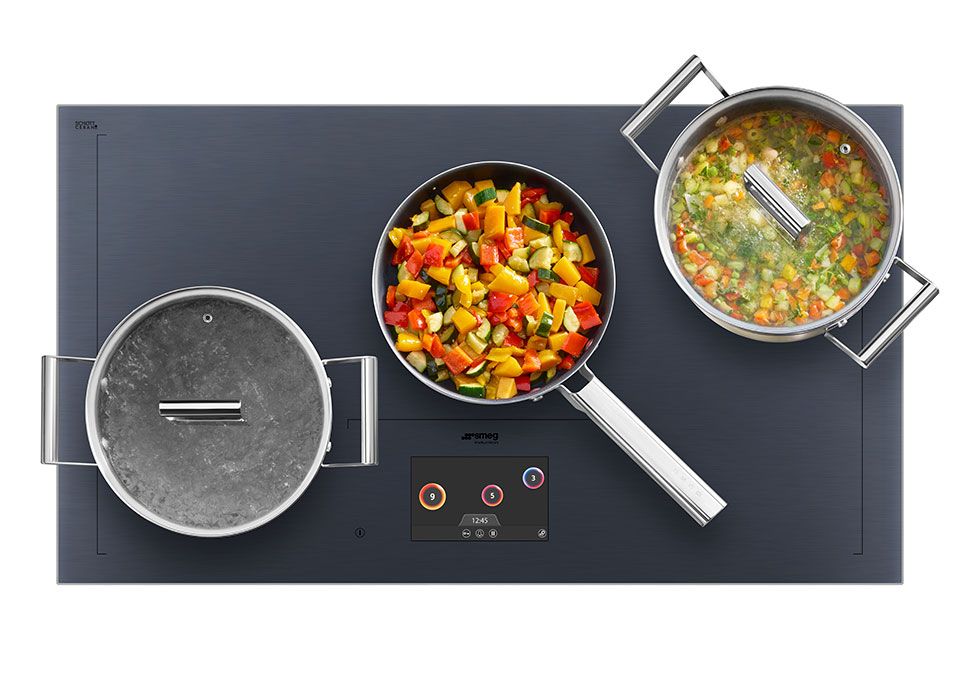

Hob Linea SIA1963DG

Product Family

Hob

Aesthetics

Linea

Type

Induction

Dimensions

90 cm

Built-in

Ultra-low profile or Fully Flushed

Local stockists

New

Compare

You might also be interested in:

5 Year extended warranty

This appliance qualifies for a comprehensive Smeg 5-year warranty assistance package covering all parts and labour. Buy with confidence and added peace of mind.

This offer is available on purchases made before 30th June 2024. To find out more and to redeem upon purchase, please click below.

Find out more

Highlights
Features
Accessories
Download

Visit our YouTube channel

We have lots of informative videos available that will provide you with all the information you need

What are Induction hobs

Watch the video

How to use Induction hobs

Watch the video

How to clean Induction hobs

Watch the video

Type

Induction: The work of these hobs is based on the principle of electromagnetic induction. The heat is generated directly in the bottom of the pan during its contact with the hob.

Product Family: Hob

Dimensions: 90 cm

Type: Induction

Built-in: Ultra-low profile or Fully Flushed

Power supply: Electric

EAN code: 8017709328016

Aesthetics

7 inches TFT touch, high resolution display, true colours

The slider control panel allows you to adjust the power simply by passing your finger across the touch
device.

Elegant silver or black glass with under glass serigraphy which allows smoothness, briliance and no noise to the surface

Colour: Neptune Grey

Finishing: Glass

Aesthetics: Linea

Material: Glass

Glass Type: Ceramic glass

Type of control setting: Vivo Screen Max

Control knobs position: Front

Slider: Yes

Slider: TFT

Glass edge: Straight edge

Double ceramization: Yes

Serigraphy colour: Black

Programs / Functions

Power booster: option allows the zone to work at full power when very intense cooking is necessary.

No. of induction cook zones: 6

Time-setting options: Automatic switch-off

No. of cooking zones with booster: 6

No. of Flexible zones: 3

Main on/off switch: Yes

Power levels: 17

Options

Quick selection, with one touch cooking begins at the highest level, then automatically reduces after time. Ideal for dishes that require quick boiling and then continued cooking without constant control (eg beef broth).

Timer: All ceramic hobs have a timer which automatically ends cooking after a preset time.

Time elapsed: shows how long the cooking zone has been in use.

Quick Start function: the chosen temperature is reached faster. The heating element works at maximum power until the right temperature is reached.

Possibility to freely move the pot everywhere without turn off the initial settings chosen.

Child lock: some models are fitted with a device to lock the programme/cycle so it cannot be accidentally changed.

TWIN_ZONE_72dpi

Keep warm function: Keep warm function keeps the cooked food heated. In this mode the heating zone operates at a minimum capacity for 120 minutes and then turns off automatically.

Melting function, suitable for slowly melting delicate foods such as chocolate or butter.

Automatic Boiling function: a sensor confirms once the boiling point has been reached and then an acoustic alert signals that the ingredients can be added, saving time and energy.

Automatic merge of zones for a bigger area

Simmering function: ideal for long-cooking recipes, preventing food from boiling over or sticking to the pan.

Standard cut out: 500-916 mm

Follow Pot: Yes

Multizone Option: Yes

Auto Multizone: Yes

Flexible Zone Type: AreaZone

End cooking timer: 6

Pause option: Yes

Minute minder: 1

End of cooking acoustic alarm: Yes

Residual time indicator: Yes

Limited Power Consumption Mode: Yes advance

Limited Power Consumption Mode in W: 2400 a 11100 - step 100 W

Show Room Demo Option: Yes

Control Lock / Child Safety: Yes

Keep warm automatic function: Yes

Bridge option: Yes

Auto-boiling Function: Yes

Quick start: Yes

Simmering Function: Yes

Melting/Low temperature cooking function: Yes

Rapid level selection: Yes

Cooking zones

1st zone position: Central

1st zone type: Induction - Multizone

1st zone dimensions: 84.0x40.0 cm

1st zone power: 2.40 kW

1st zone booster power: 3.70 kW

Technical Features

Overheat protection: The safety system that automatically turns off the hob in case of overheating of the control unit.

Overfill protection: The special overfill protection shuts down the stove in the presence of overflow of liquids.

Indication of residual heat: After the glass ceramic hob is switched off the residual heat indicator shows which of the heating zones still remains hot. When the temperature drops below 60 ° C, the indicator goes out.

Automatic setting according to pan dimension: Yes

Permanent Automatic Pot Detection with indication of the relative control: Yes

Automatic pan detection: Yes, min 10 cm

Automatic switch off when overheat: Yes

Automatic switch off when overflow: Yes

Residual heat indicator: Yes

Protection against accidental start up: Yes

Performance / Energy Label

Hob energy consumption: 193.6 Wh/Kg

1st zone energy consumption: 193.6 Wh/Kg

Electrical Connection

Nominal power (W): 11100 W

Current: 49 A

Voltage (V): 220-240 V

Voltage 2 (V): 380-415 V

Frequency (Hz): 50/60 Hz

Type of electric cable: Single and Double phase

Type of electric cable supplied: Yes, Single and Double phase

Type of electric cable: Three-phase

Power supply cable length: 120 cm

Logistic Information

Dimensions of the product HxWxD (mm): 51x930x515

Depth (mm): 515 mm

Width (mm): 930 mm

Product Height (mm): 51 mm

Net weight (kg): 19.700 kg

Gross weight (kg): 21.700 kg

Packed width: 1000 mm

Packaged depth: 570 mm

Height (mm) packed: 120 mm

Dimensions of the packed product (mm): 120X1000X570

Maximum stackability: 15

Type of packaging: Cardboard

Packaging composition - paper & cardboard (kg): 0.660 kg

Packaging composition - polystyrene (kg): 1.350 kg

Packaging composition - wood (kg): 0.000 kg

Packaging composition - plastic (kg): 0.039 kg

Optional

TPKPLATE

Accessories, Type: Griddle, Cookers, Hobs

GRILLPLATE

Accessories, Type: Griddle, Cookers, Hobs

Technical drawing

Instruction manual

User manual (EN) (pdf)

Warranty

Warranty certificate (EN) (pdf)

Product information sheet

Download

Product sheet

Download

Brochure

Download
